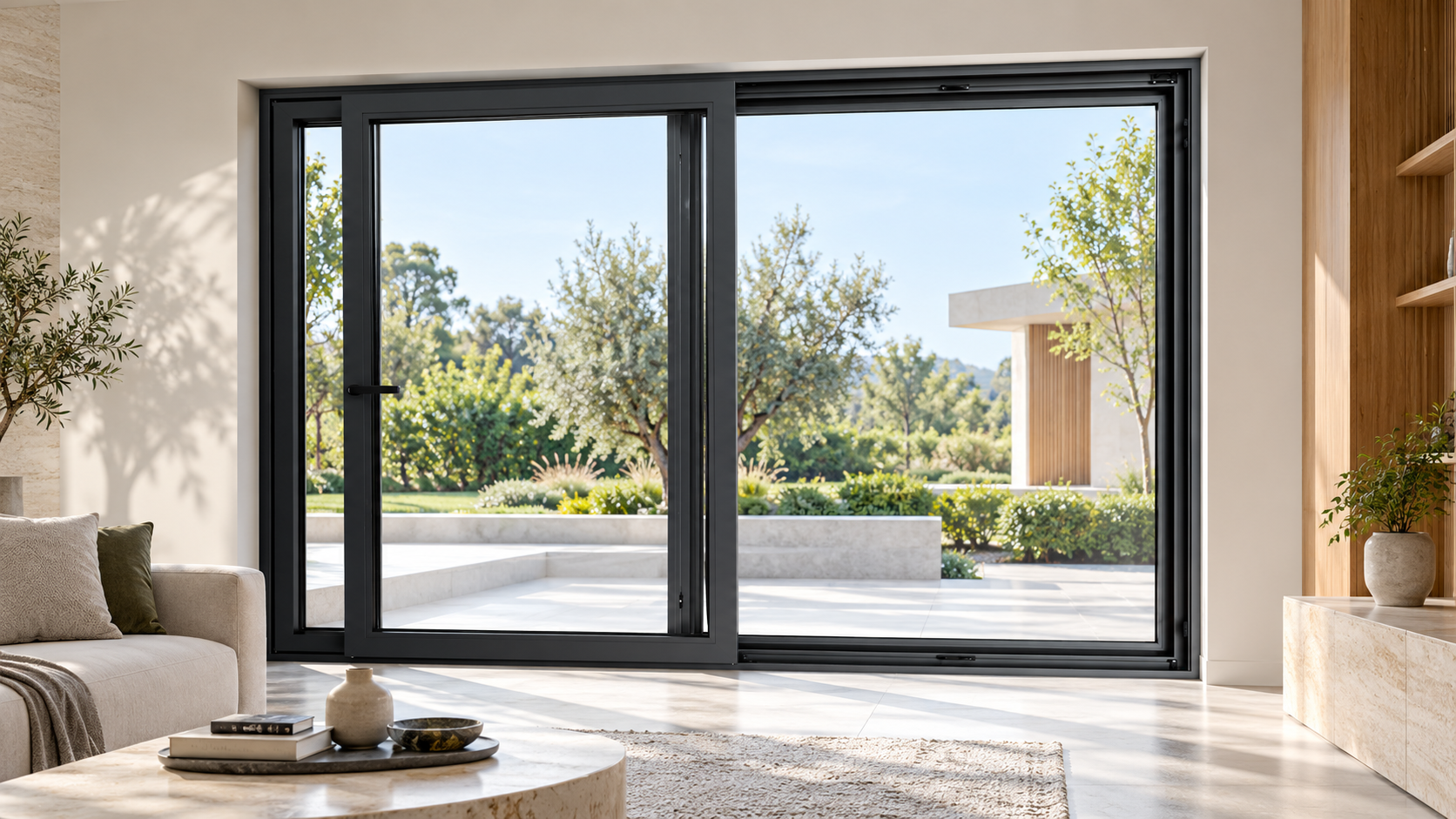

Integrated hardware control system solution for exterior window
Superior Heat Insulation and Waterproofng Unafraid of Strong Winds and Heavy Rain.
Short Description

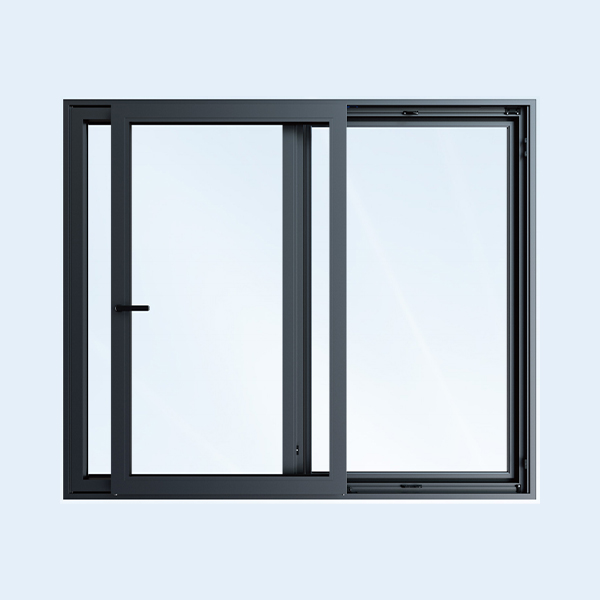

The HOPO Slim Lift-Sliding Window features a sleek concealedtrack,effortlessoperation, and excellent sealing for superiorinsulation.Perfect for modern,energy-effcient homes.
.png)

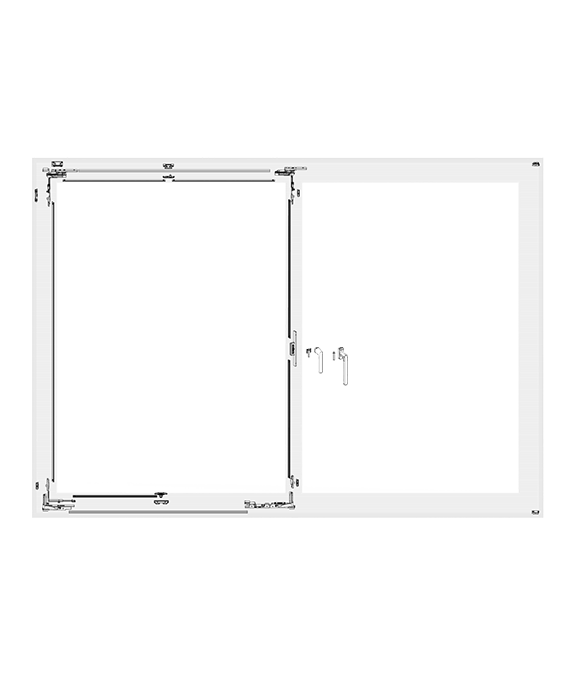

Solution Configuration
Tilt and Slide Window Configuration (100kKG)
| No. | Product Name | Qty | Unit | Product Code | Notes |
| 1 | PH952 Handle | 1 | pc | PH952.00.168HPRO5 |
168 Antibacterial matte black. Available in 012 silver |
| 2 |
SP07 Square Spindle |
1 | pc | SP07.12.25C021X | 25mm |
| 3-1 |
Tilt and Slide Window System (Left) |
0 | pc | ASS56.00.031LHPRO4 | 13mm Center distance, left |
|
Tilt and Slide Window System (Right) |
1 | set | ASS56.00.031RHPRO4 | 13mm Center distance, right | |
|
3-2 |
Tilt and Slide Window System (Left) |
0 | set | ASS56.06.031LHPRO4 | 6.5mm Center distance, left |
|
Tilt and Slide Window System (Right) |
1 | set | ASS56.06.031LHPRO4 | 6.5mm Center distance, right |
Optional Accessories
| No. | Product Name | Qty | Unit | Product Code | Notes |
| 1 | Aluminum Rod | As needed | pc | DR56.15.065X |
1500 mm length. Select one unit when sash width is below 1100 mm; select two units when sash width exceeds 1100 mm |
| 2 | Horizontal Locking Rod | As needed | pc | ALR56.01.031X | Additional units are recommended for sash width over 1400 mm-add one set |
| 3 | Locking Plate | As needed | pc | ALP56.00.031X | |
| 4 | Horizontal Lower Locking Rod | As needed | pc | ALR56.03.031X | Additional units are recommendedfor sash width over 1000 mm-add one set |
|
5 |
Horizontal Lower Locking Plate | As needed | pc | ALP56.03.031X | |
|
6 |
Locking Rod | As needed | pc | ALR56.02.031HPRO4 | Additional units are recommended for sash height over 1300 mm-add two sets; for sash height over 2000 mm, add four sets |
|
7 |
Extended Locking Plate | As needed | pc | ALP56.02.031HPRO4 |
Advantages Of The Solution

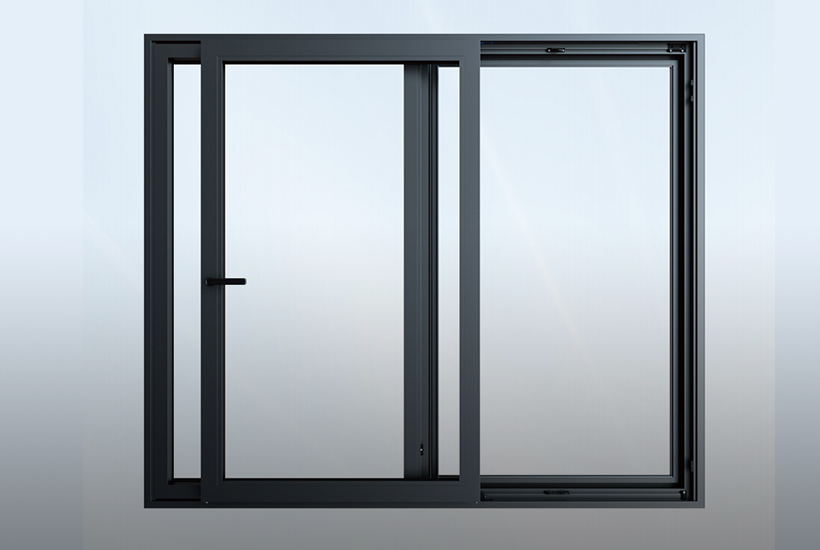

Two Opening Modes
- Large-area ventilation with a sleek design.
- 72 mm inward movement without interferingwith curtains.
- Does not occupy indoor space and avoidscollision.

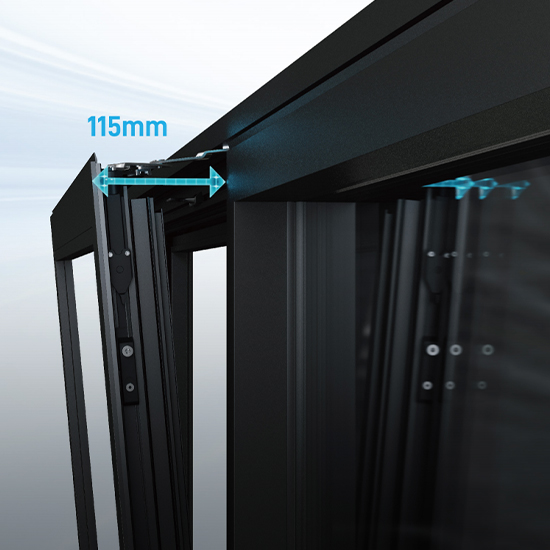

Two Opening Modes
- Micro-ventilation keep air circulation.
- Dual-arm design with a tilt distance of 115mm.
- Providing a wider opening angle and greater stability.

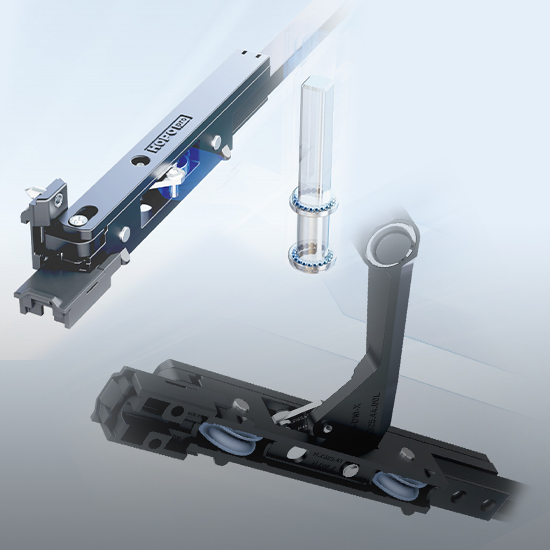

Superior Load-Bearing & Smooth Operation
- High-strength hard alloy spindle with asteel ball bearing supports up to 100 kg.suitable for large triple-glazed windows.
- Innovative polymer rollers ensure silent,smooth operation.Dual-assist structure enables easy.effortless sliding.

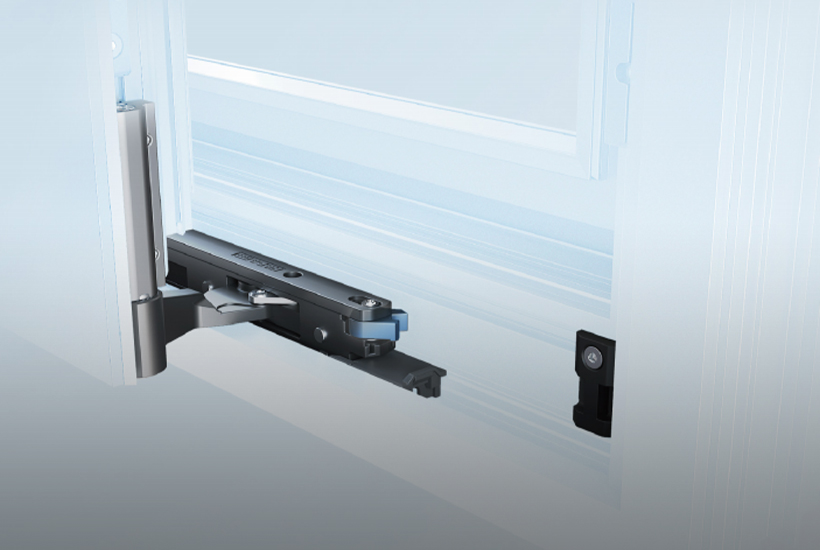

Self-Locking Structure
- Inward self-locking design prevents collisions and friction with the frame, protecting windows, doors, and hardware

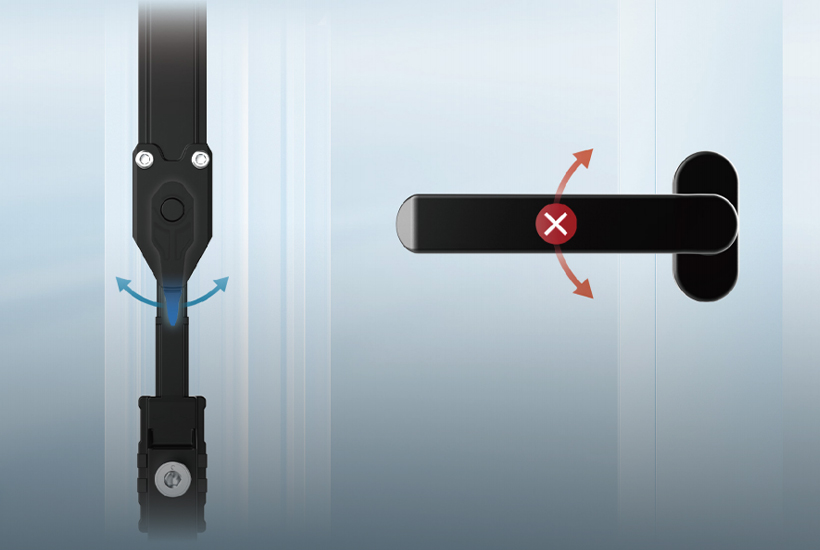

Dual-Sided Anti-Misoperation Design
- Prevents handle rotation afteropening to avoid collision betweenlocking points and plates, protectingthe hardware for safety anddurability.

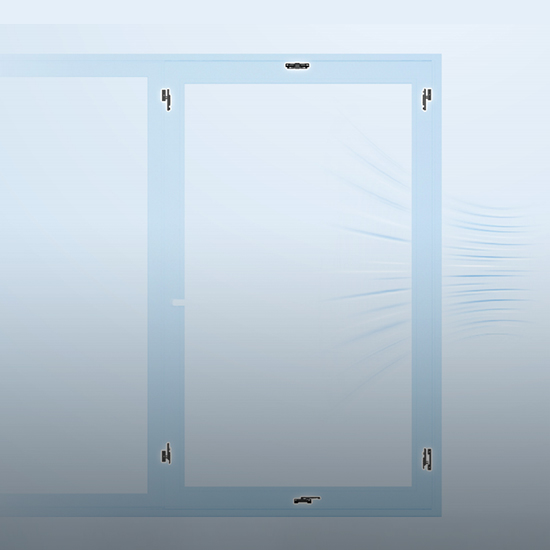

Windproof & Thermal insulation
- Additional locking points can be added atthe top and bottom of the sash as neededMulti-point sealing locks enhance windresistance and sound insulation.
