Integrated hardware control system solution for exterior window

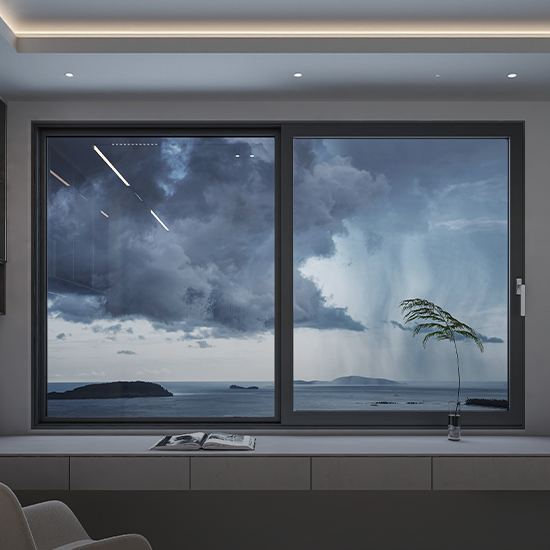

Superior Heat Insulation and Waterproofng Unafraid of Strong Winds and Heavy Rain.
Short Description
Sealing Sliding WindowSealing Sliding WindowSealing Sliding WindowSealing Sliding WindowSealing Sliding WindowSealing Sliding WindowSealing Sliding WindowSealing Sliding WindowSealing Sliding WindowSealing Sliding WindowSealing Sliding WindowSealing Sliding Window
Technical Resources
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.
Solution Configuration
| No. | Product Name | Qty | Unit | Product Code | Notes |
| 1 | PH952 Handle | 1 | pc | PH952.00.168HPRO5 | 168 Antibacterial matte black |
| 2 | SP07 Spindle | 1 | pc | SP07.12.40C021X | Exposed spindle length: 40 mm |
| 3 | Gear Case (Side-Mounted) | 1 | pc | AGC58.08.031HPRO4 | – |
| 4 | Sealing Sliding System | 1 | set | ASS50.10.4T031HPRO4 | – |
| 5 | Rolling Locking Rod | 2 | pcs | LPE50.20.2T031X | Load capacity 100 kg |
| 6 | Locking Plate | 2 | pcs | SLP50.20.38HPRO4 | Quantity adjustable based on sash height |
| 7 | Hook Lock | 1 | pc | SDT50.10.1T031X | Quantity adjustable based on sash heightConfigured as follows:-1 set for sash height ≤ 1.2 m-2 sets for 1.2 m-1.8 m-3 sets for 1.8 m-2.6 m |
Optional Accessories
| No. | Product Name | Qty | Unit | Product Code | Notes |
| 8 | Middle Bottom Roller | 1 | pc | AHR50.13.38X | Applicable when sash width exceeds 1000 mmor weight exceeds 100 kg. Each additionalmiddle bottom roller increases load capacity by30 kg, up to 160 kg maximum. |
| 9 | Buffer Damper | 1 | set | BD403.26.38X | Optional configuration: 1 set for single sash, 2sets for double sashes |
Advantages Of The Solution

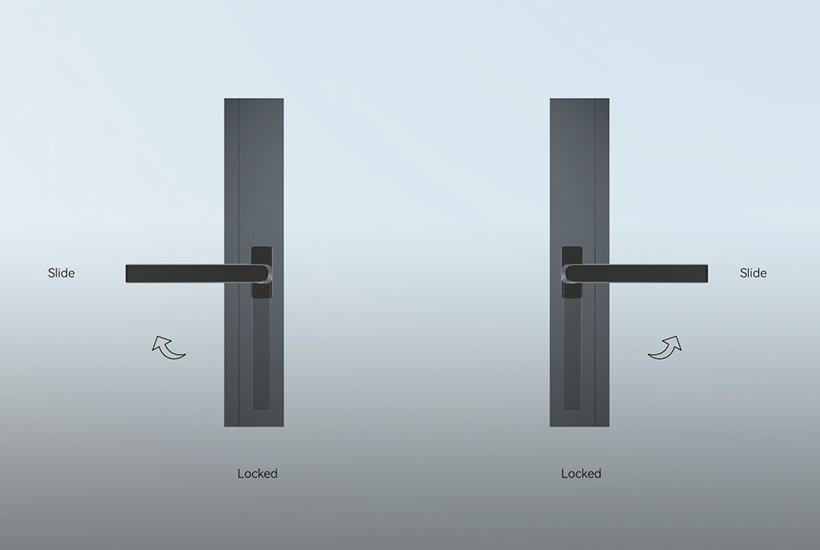

Operation Diagram

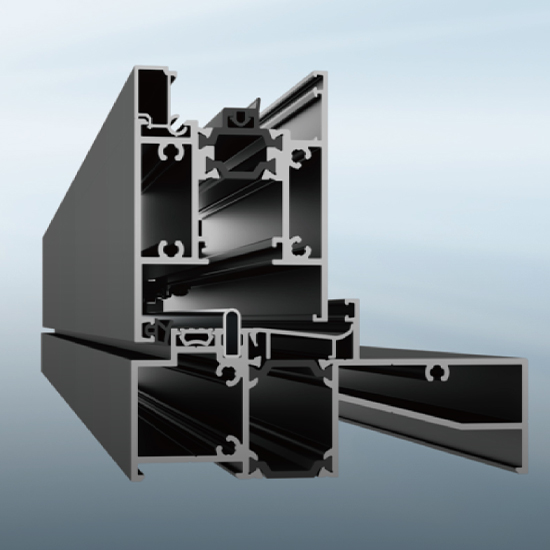

Profile Information
Super Wind Resistance

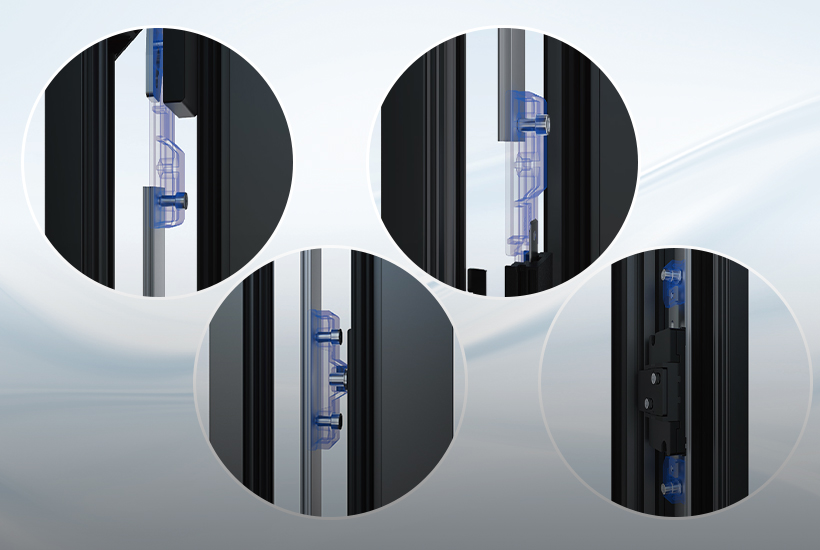

- Multi-point locking with stainless-steel hooks ensures superior stability and wind resistance.

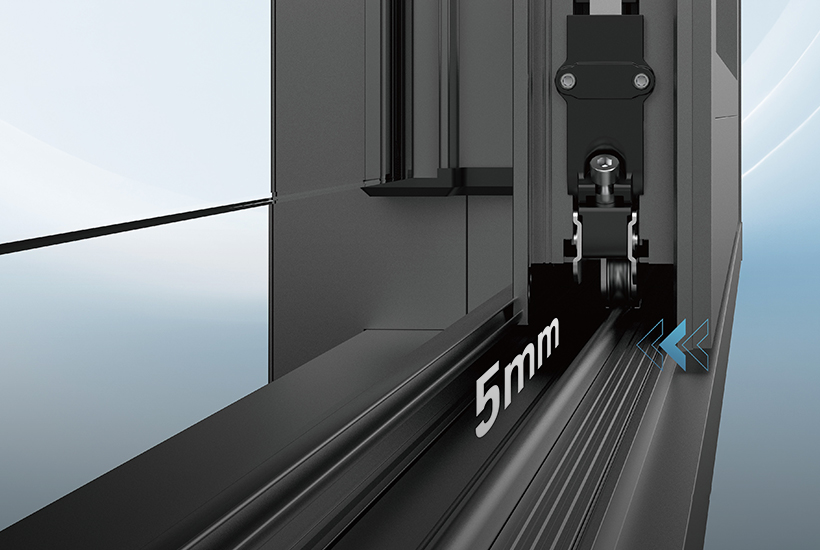

5mm Compression Sealing
- 5 mm compression gasket delivers a tight sash-to-frame seal with excellent sound, heat, and moisture insulation.
High Load Capacity

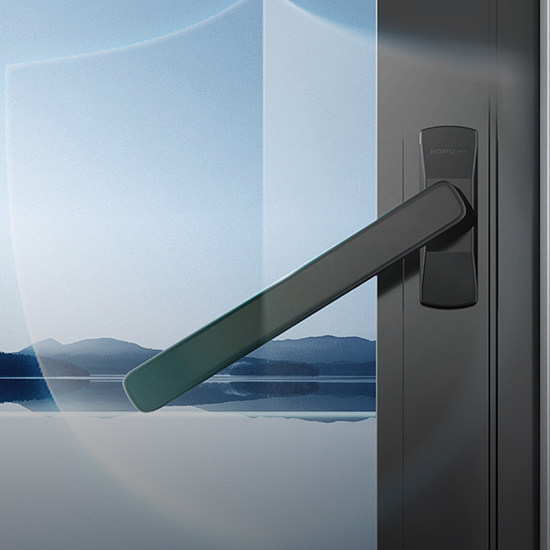

- Ergonomic long handle with 30 tactile click feedback for effortless control. Antibacterial coating provides lasting surfacehygiene with up to 99% efficiency.
99% Antibacterial Protection
- Backset allows quick replacement, improving installation efficiency.
Smooth & Secure Operation

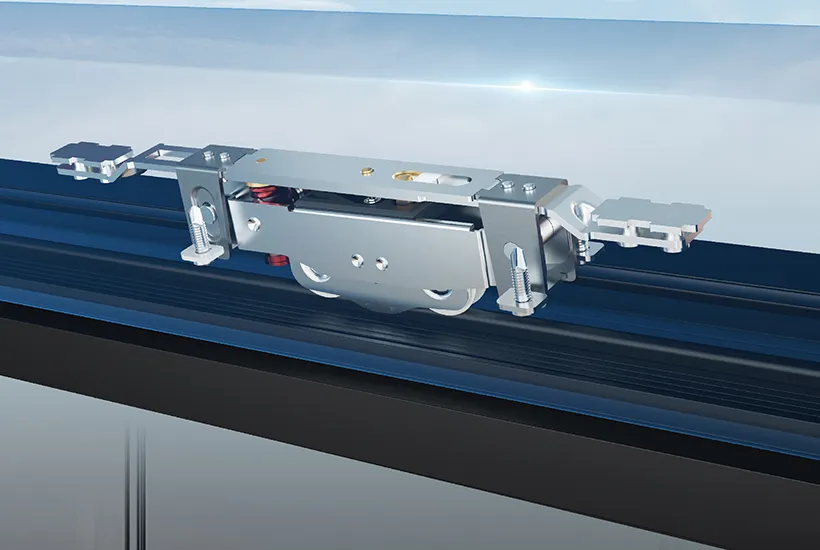

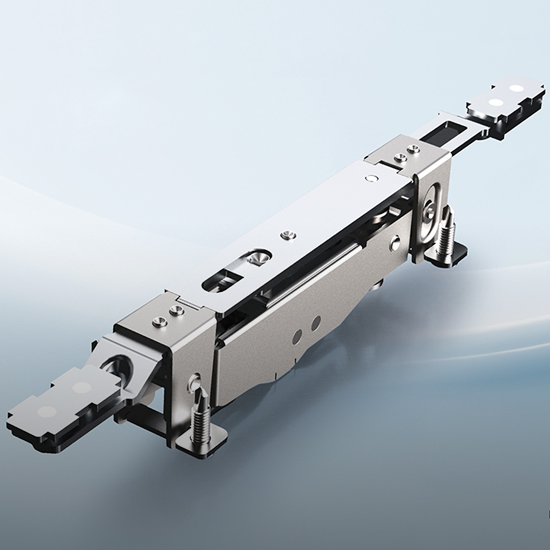

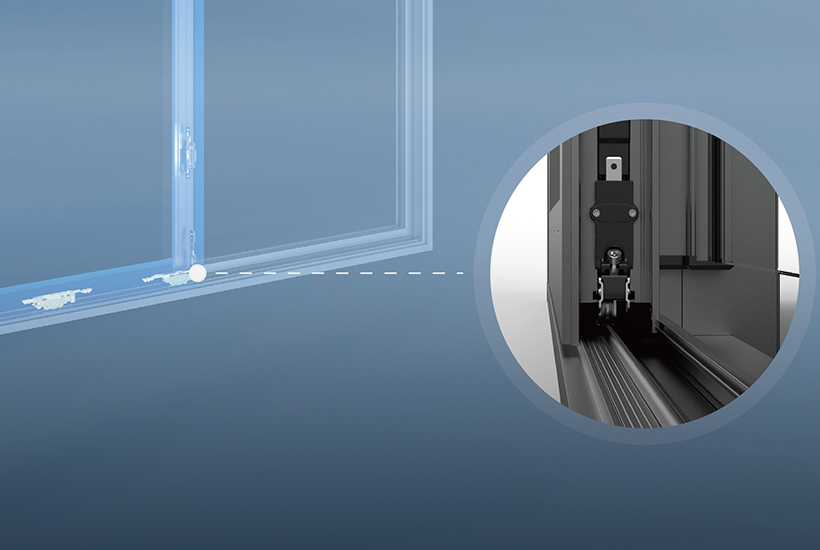

- Equipped with an adjustable high-load lower roller and precision upper guide roller.
Smooth & Secure Operation
- When locked, the sash seals firmly against the gasket; when sliding,it separates smoothly for effortless motion and derailment prevention.
Soft-Close Mechanism

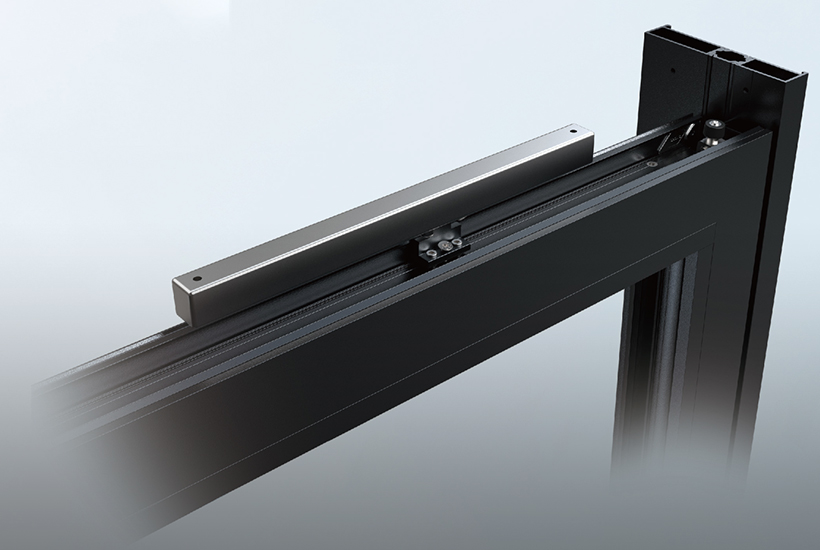

- Equipped with a damper for smoother operation and whisper-quiet window closing.
Corrosion-Resistant & Mold -Proof
- High-quality casting with special anti-corrosion surface treatment ensures lasting performance and a long-lasting shine.
Flexible Control
- Window sash can be locked at any desired opening size.
- Easily switch between micro-ventilation mode and wide-open mode.
- Small gap ventilation lock ensures family safety.
- Large opening allows for quick ventilation.
Easy Installation

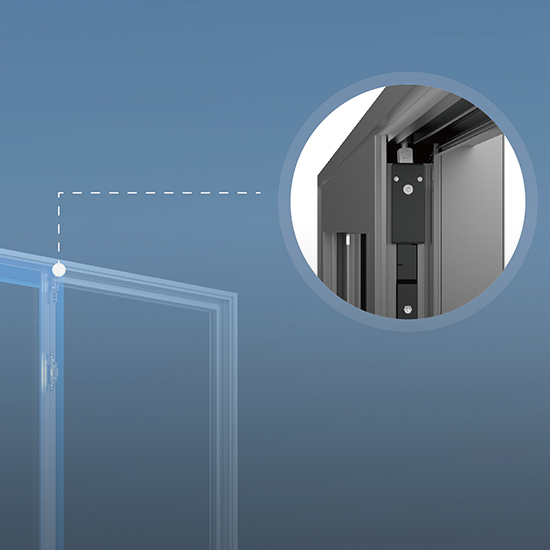

- Top and bottom rollers use quick-fit screw mounting through the slot.
- No need for aluminum punching,reducing error rates and improving efficiency.
