Integrated hardware control system solution for exterior window
Superior Heat Insulation and Waterproofng Unafraid of Strong Winds and Heavy Rain.
Short Description
G53 Heavy-Duty Bi-Folding DoorG53 Heavy-Duty Bi-Folding DoorG53 Heavy-Duty Bi-Folding DoorG53 Heavy-Duty Bi-Folding DoorG53 Heavy-Duty Bi-Folding DoorG53 Heavy-Duty Bi-Folding DoorG53 Heavy-Duty Bi-Folding DoorG53 Heavy-Duty Bi-Folding DoorG53 Heavy-Duty Bi-Folding Door
Technical Resources
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.
Solution Configuration
| No. | Product Name | Qty | Product Code | Notes |
| 1 | Folding Hinge | 2 | ASH67.00.XX | – |
| 2 | Frame Hinge Assembly- 50L | 1 | ASH67.50.xX | – |
| 3 | Frame Hinge Assembly- 60R | 1 | ASH67.60.XX | – |
| 4 | Roller Assembly-40 | 1 | ABR67.40.XX | – |
| 5 | Snap Latch lock (Windproof Catch) | 8 | TBL67.00.XX | – |
| 6 | Folding Accessory Kit | 12 | AB19.00.XX | – |
| 7 | Pull Handle | 1 | AHH67.00.XX | – |
| 8 | Shoot Bolt Rod Kit | 2 | ASB67.10.XX | – |
| 9 | Shoot Bolt Rod Kit 1 | 2 | ASB67.20.XX | – |
| 10 | AB20 Anti-Swing Piece | 12 | AB20.00.XX | – |
| 11 | Flat Handle | 2 | PH171.00.XX | – |
| 12 | C99 Lock Cylinder | 1 | C99.8030C4T029 | – |
| 13 | C99 Lock Cylinder | 1 | C99.3080C4T029 | – |
| 14 | Locking Plate | 2 | H.2474.33.00 | – |
| 15 | Gear Case | 2 | AGC65.14.021X | – |
| 16 | Door Handle Assembly | 1 | HSD605.168168H5 | – |
| 17 | K Lock Body | 1 | SDLK50.33.22CXX | – |
| 18 | Reversible Adjustable Locking Plate | 1 | ALPD50.07.38 | – |
| 19 | Rolling Locking Rod | 2 | ALR28.00.021H4 | – |
Advantages Of The Solution

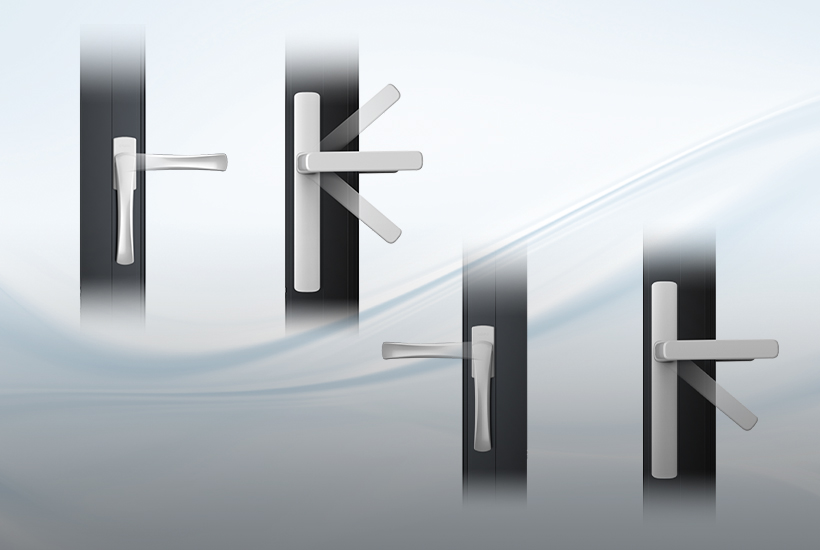

Operation Diagram
- Single-lock system & multi-point lock system

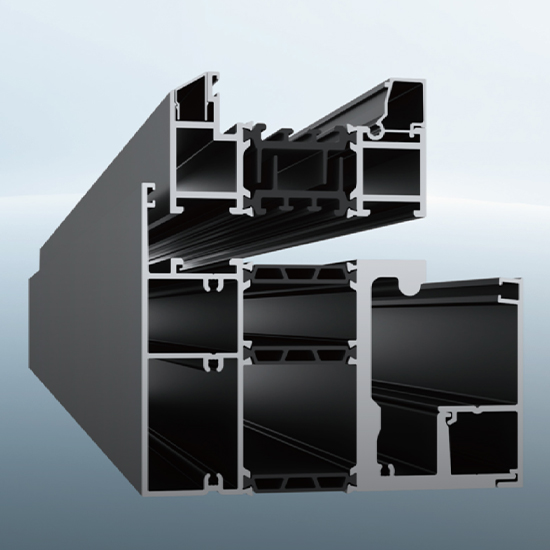

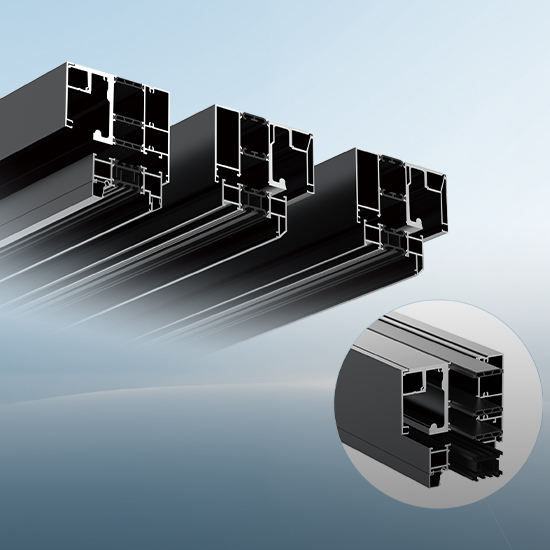

Profile Information
Stable Structure
- Stainless steel load-bearing structure, powder-coated for corrosion prevention, securely supporting heavy glass doors.
Slim Design

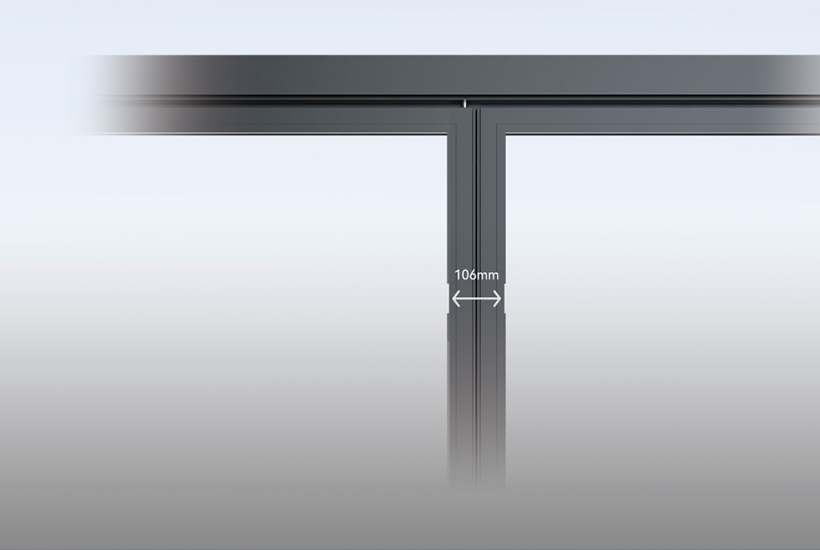

- Profiles feature a slimmer structure, measuring only 160 mm with mullion or 106 mm without, providing a wider view and a more elegant appearance.
UItimate Sealing

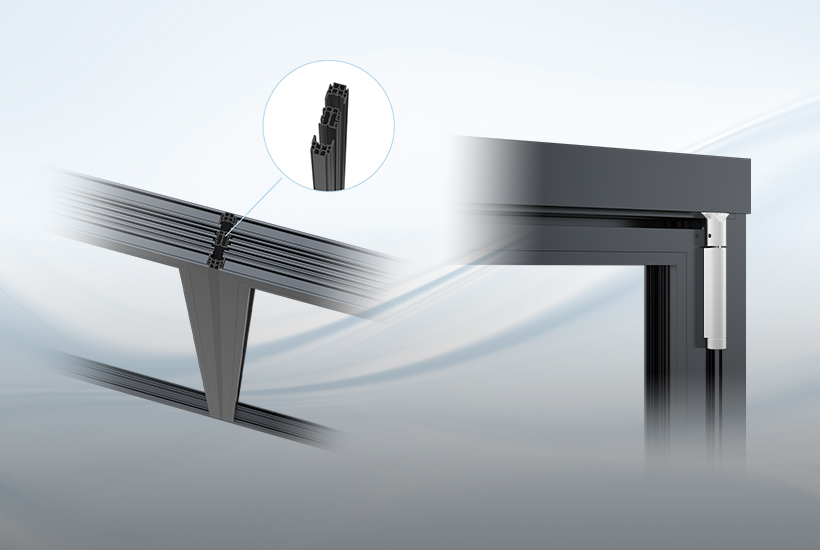

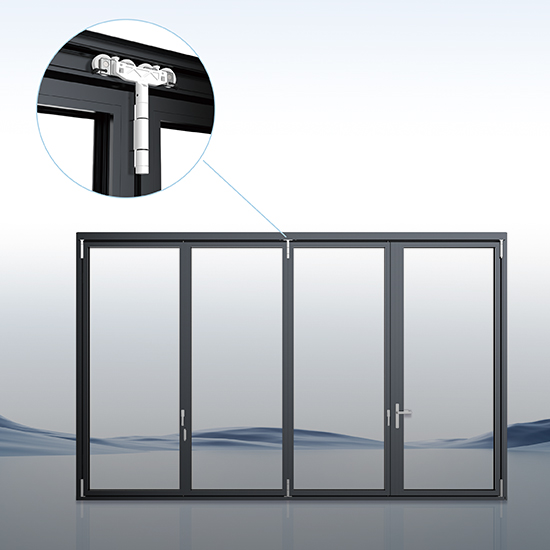

- Top and bottom corners are connected with hinges, while the middle sealing gasket remains continuous for a more complete and effective seal.
- Semi-hidden hinge structure ensures a clean, minimalist look.
UItimate Sealing
- Triple-Layer sealing around all four sides effectively blocks wind and rain, providing enhanced weather resistance.
Smooth & Stable Operation

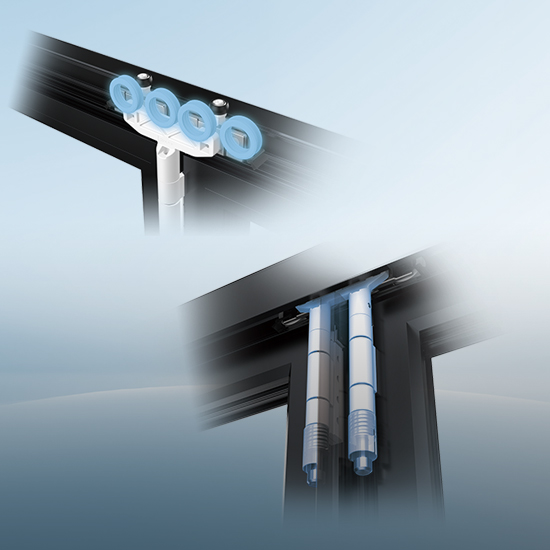

- Large stainless rollers and dual load-bearing design reduce friction and enhance sliding stability, extending lifespan.
Quick Installation & Adjustment

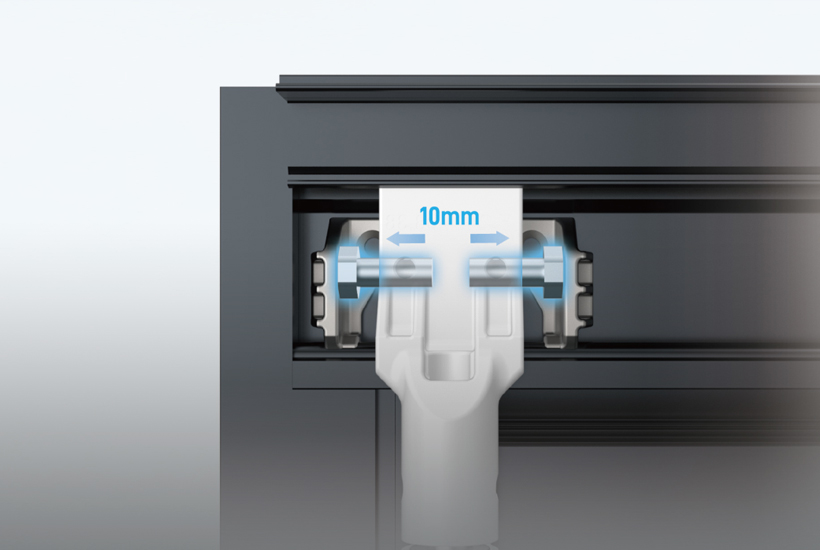

- Side frame auto-adjusts sash width tolerance up to10 mm each side, effectively compensating onsite errors.
Quick Installation & Adjustment
- No need to cut tracks or remove sashes; quick-release upper roller units save over five times the maintenance time.
Quick Installation & Adjustment

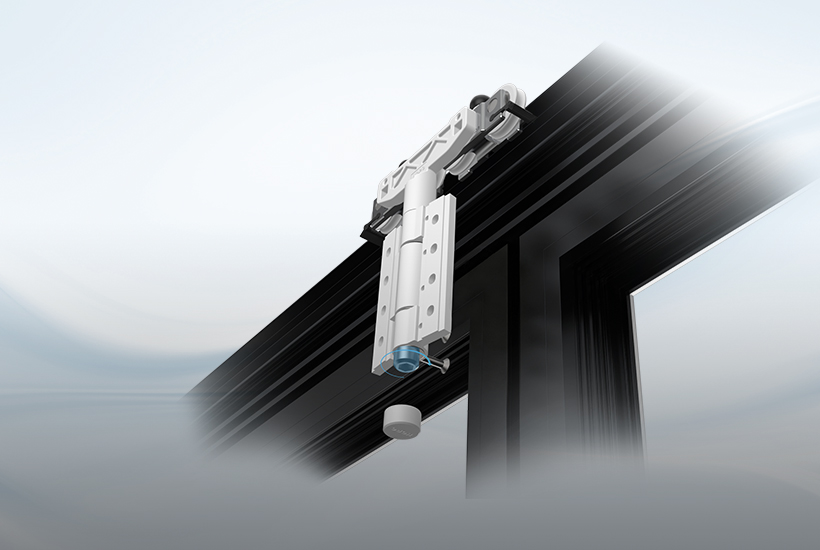

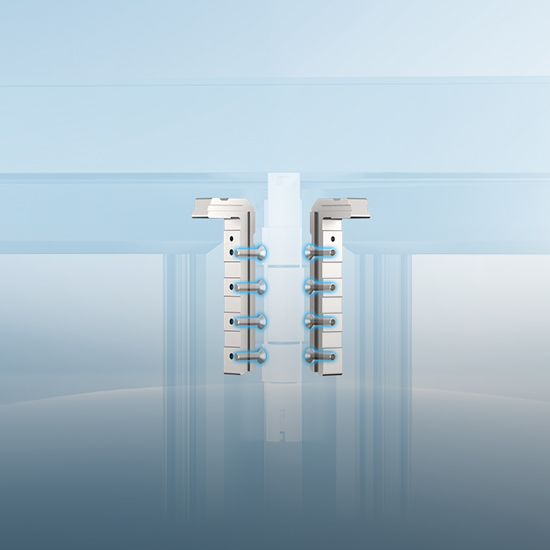

- Hinges are rigidly connected through corner cleats, delivering higher strength and stable alignment without repeated hinge-channel adjustment, reducing adjustment time by over fourfold.
One System, Multiple Adaptations
- Simply replace the upper track material to switch between top-load, bottom-load, or dual-support configurations, offering flexible load-bearing options.
One System, Multiple Adaptations

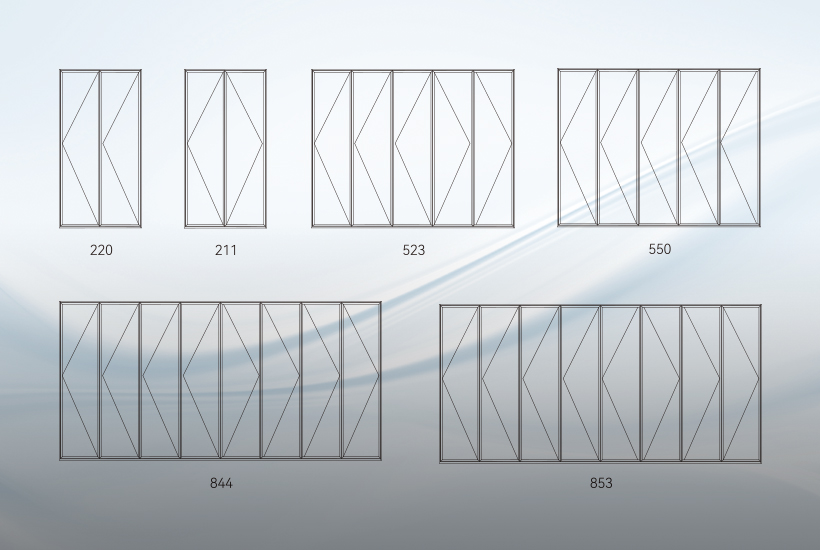

- Compatible with odd/even panels and inward/outward folding configurations for flexible layouts and architectural harmony.
