Integrated hardware control system solution for exterior window
Superior Heat Insulation and Waterproofng Unafraid of Strong Winds and Heavy Rain.
Short Description

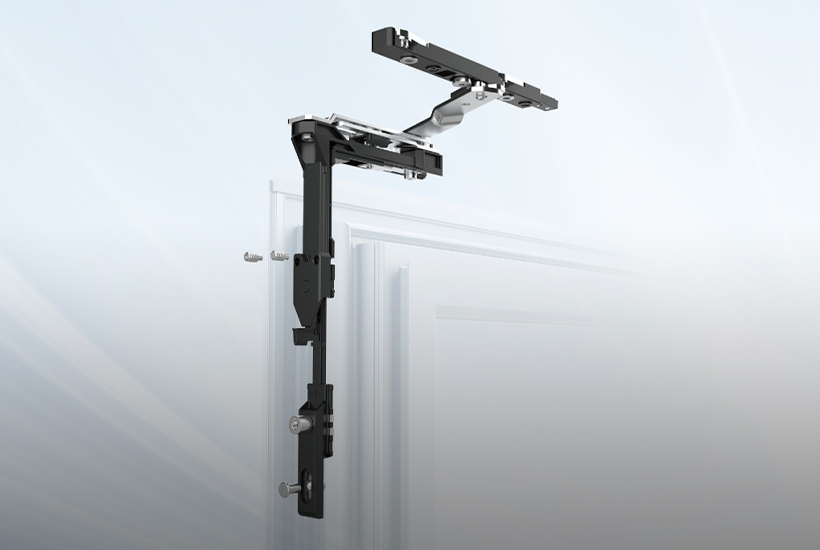

G46 Tilt and Slide WindowG46 Tilt and Slide WindowG46 Tilt and Slide WindowG46 Tilt and Slide WindowG46 Tilt and Slide WindowG46 Tilt and Slide WindowG46 Tilt and Slide WindowG46 Tilt and Slide Window
Technical Resources
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.
Solution Configuration
Tilt and Slide Window Configuration (100kG)
| No. | Product Name | Qty | Unit | Product Code | Notes |
| 1 | PH952 Handle | 1 | pc | PH952.00.168HPRO5 | 168 Antibacterial matte blackAvailable in 012 silver |
| 2 | SP07 Square Spindle | 1 | pc | SP07.12.25C021X | 25mm |
| 3-1 | Tilt and Slide Window System (Left) | 0 | pc | ASS56.00.031LHPRO4 | 13mm Center distance, left |
| Tilt and Slide Window System (Right) | 1 | set | ASS56.00.031RHPRO4 | 13mm Center distance, right | |
| 3-2 | Tilt and Slide Window System (Left) | 0 | set | ASS56.06.031LHPRO4 | 6.5mm Center distance, left |
| Tilt and Slide Window System (Right) | 1 | set | ASS56.06.031RHPRO4 | 6.5mm Center distance, right |
Optional Accessories
| No. | Product Name | Qty | Unit | Product Code | Notes |
| 4 | Aluminum Rod | As needed | pc | DR56.15.065X | 1500 mm length.Select one unit when sash width isbelow 1100 mm, select two unitswhen sash width exceeds 1100 mm |
| 5 | Horizontal Locking Rod | As needed | pc | ALR56.01.031X | Additional units are recommendedfor sash width over 1400 mm-add one set |
| 6 | Locking Plate | As needed | pc | ALP56.00.031X | |
| 7 | Horizontal Lower Locking Rod | As needed | pc | ALR56.03.031X | Additional units are recommendedfor sash width over 1000 mm-add one set |
| 8 | Horizontal Lower Locking Plate | As needed | pc | ALP56.02.031X | |
| 9 | Locking Rod | As needed | pc | ALR56.02.031HPRO4 | Additional units are recommendedfor sash height over 1300 mm-add two sets; for sash height over2000 mm, add four sets |
| 10 | Extended Locking Plate | As needed | pc | ALP56.05.031HPRO4 |
Advantages Of The Solution

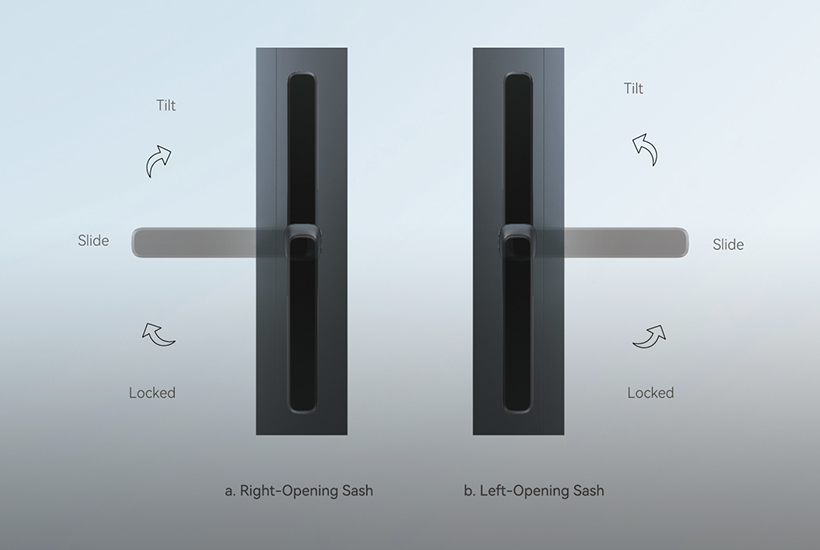

Operation Diagram

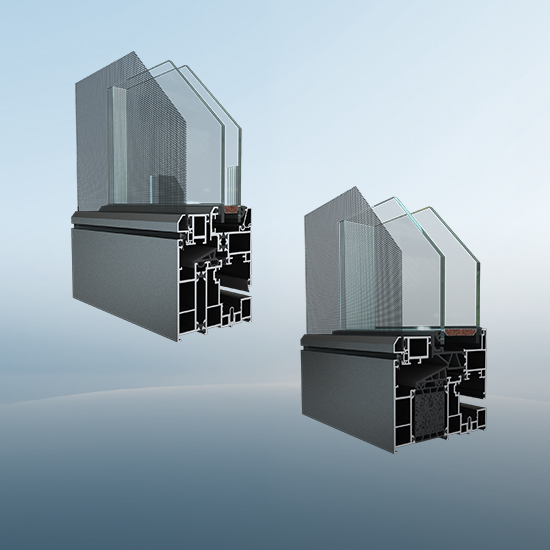

Profile Information
- Thermal Break:24 mm / 35.3 mm
Two Opening Modes
- Large-area ventilation with a sleek design.

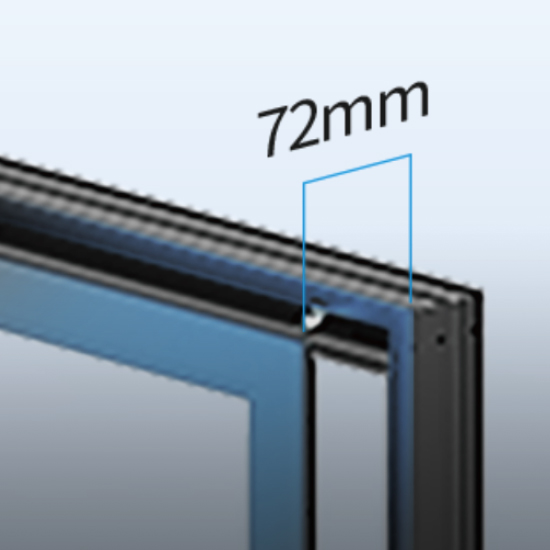

- 72 mm inward movement without interferingwith curtains.
- Does not occupy indoor space and avoidscollision.
Two Opening Modes

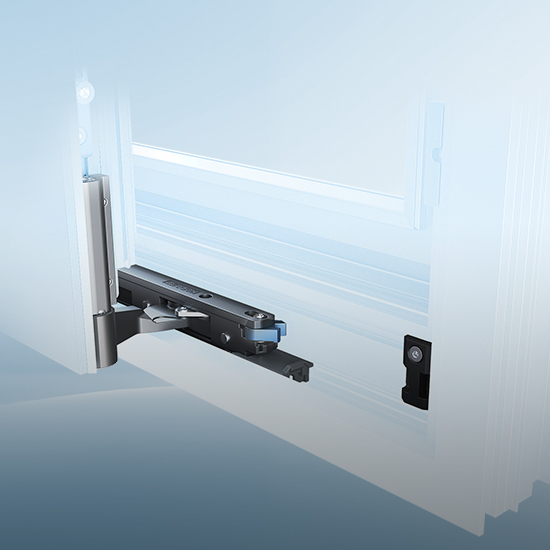

- Micro-ventilation keep air circulation.

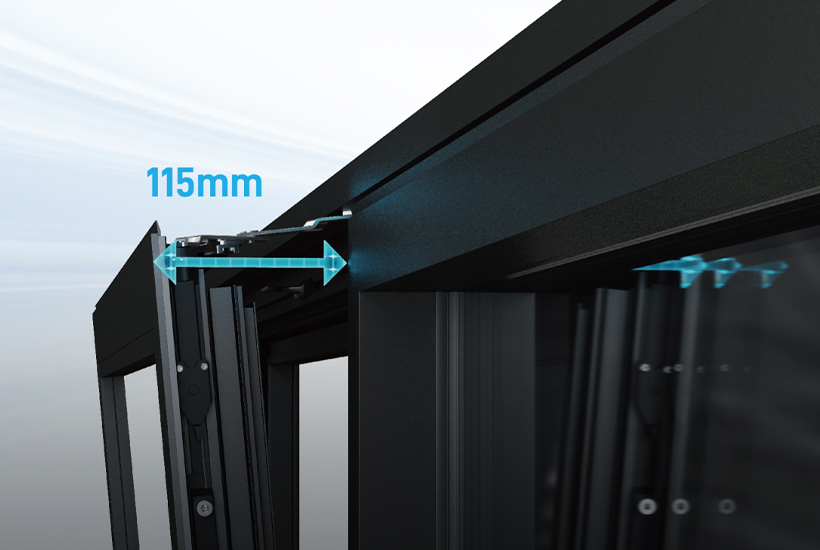

- Dual-arm design with a tilt distance of 115mm.
- Providing a wider opening angle and greater stability.
Superior Load-Bearing & Smooth Operation

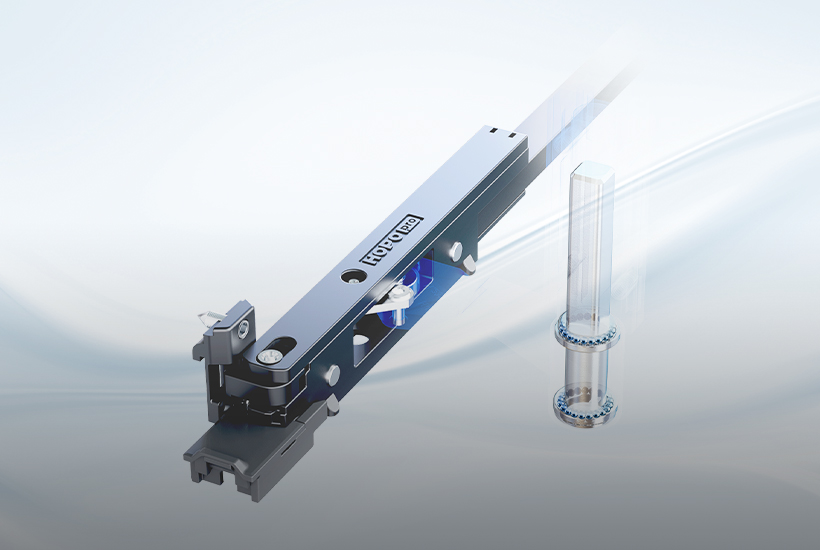

- High-strength hard alloy spindle with a steel ball bearing supports up to 100 kg, suitable for large triple-glazed windows.
Superior Load-Bearing & Smooth Operation

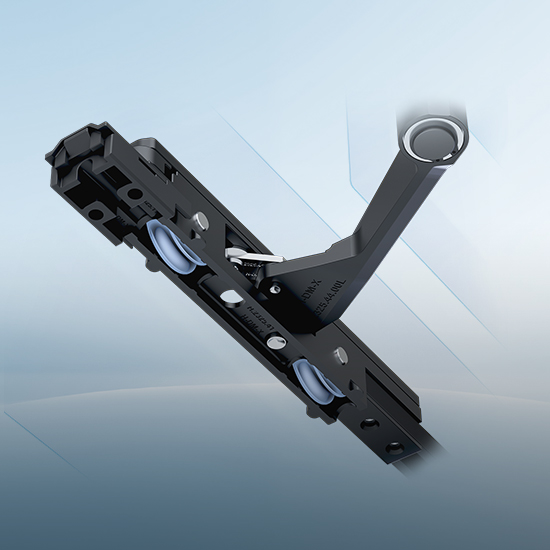

- Innovative polymer rollers ensure silent,smooth operation.
- Dual-assist structure enables easy,effortless sliding.
Self-Locking Structure
- Inward self-locking design prevents collisions and friction with the frame, protecting windows, doors, and hardware.

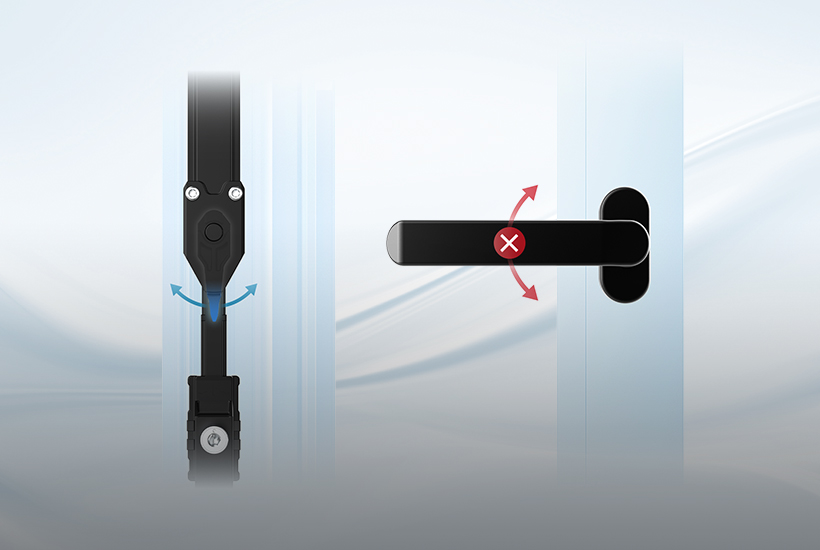

Dual-Sided Anti-Misoperation Design
- Prevents handle rotation after opening to avoid collision between locking points and plates, protecting the hardware for safety and durability.
Windproof & Thermal Insulation
- Additional locking points can be added at the top and bottom of the sash as needed. Multi-point sealing locks enhance wind resistance and sound insulation.
Easy Installation & Efficient Assembly

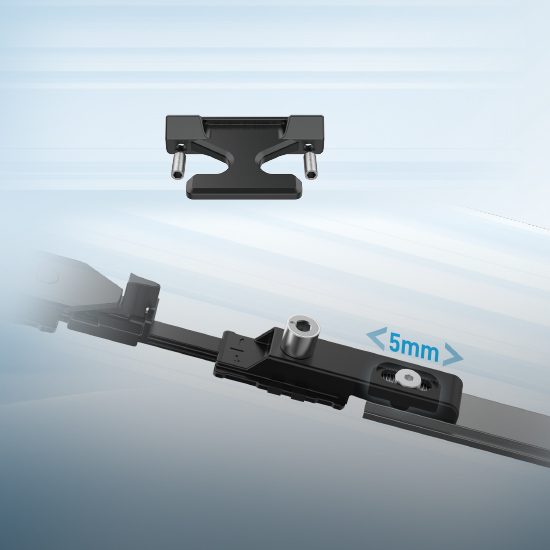

- Quick installation with set screws and clamping pieces ensures secure fastening.
Easy Installation & Efficient Assembly

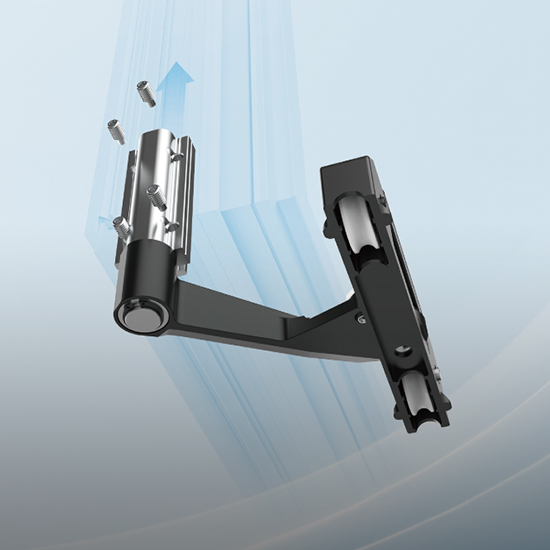

- Top and bottom roller assemblies are positioned through the corner groove for one-step installation.
Easy Installation & Efficient Assembly
- The roller assembly installs without damaging the profile or corner cleats, ensuring full sash structural strength.
