Integrated hardware control system solution for exterior window
Superior Heat Insulation and Waterproofng Unafraid of Strong Winds and Heavy Rain.
Short Description
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more. Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.
Technical Resources
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.
Solution Configuration
Standard Configuration
| No. | Product Name | Qty | Unit | Product Code | Notes |
| 1 | Lifting Sash Drive | 1 | pc | – | – |
| 2 | 500MA Handle | 1 | pc | MAL500.021.011 | Anodized silver |
| 3 | Heavy-duty T-type Connector | 1 | pc | TTC31.19.069X | Matt Black |
| 4 | C-groove Safety Locking Rod | 1 | pc | ALR21.01.021H4 | Eco-friendly color zinc coating |
| 5 | C-groove Safety Locking Plate | 2 | pcs | ALP13.00.021 | Eco-friendly color zinc coating |
| 6 | 180° Adjustable Inward Opening Hinge (Left) | 1 | pc | CATT51.10.38LH5 | – |
| 7 | Friction Stay | 2 | pcs | ATR80.21.12C38H5 | – |
Advantages Of The Solution

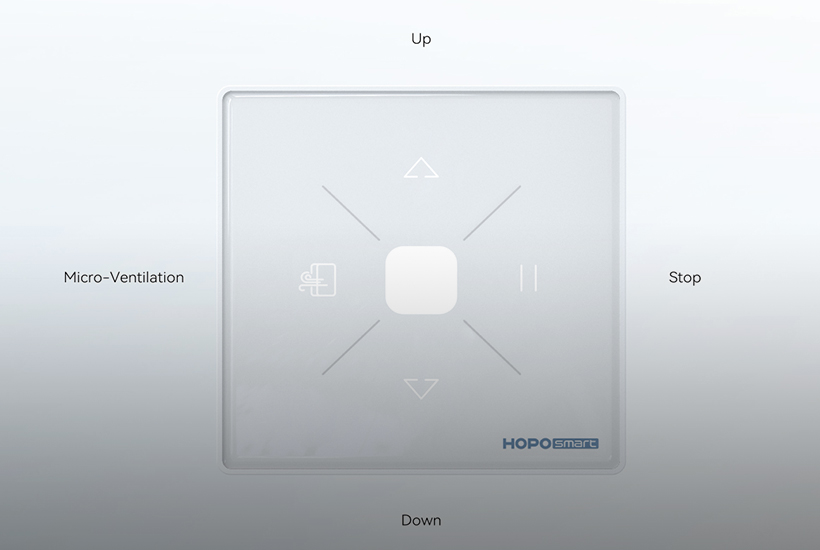

Operation Diagram
Profile Information
Electric Lift
- Effortlessly resists typhoons above Level 12 and heavy rain.
Minimalist Design
- Concealed hardware and electric control system feature a flushframe-sash design for a clean,minimalist appearance.

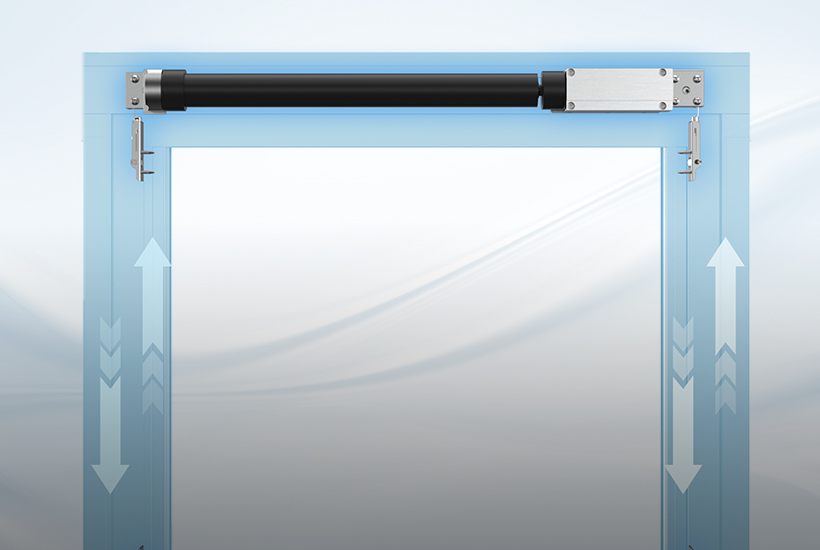

Dual Drive Stability
- Dual-side lift system withcable-wheel structure ensuresstable support for sashes up to 50kg. Balanced force distributiondelivers smoother, steadieroperation-no sash tilt, no drop,long-term reliability.
High Sealing, Thermal Insulation

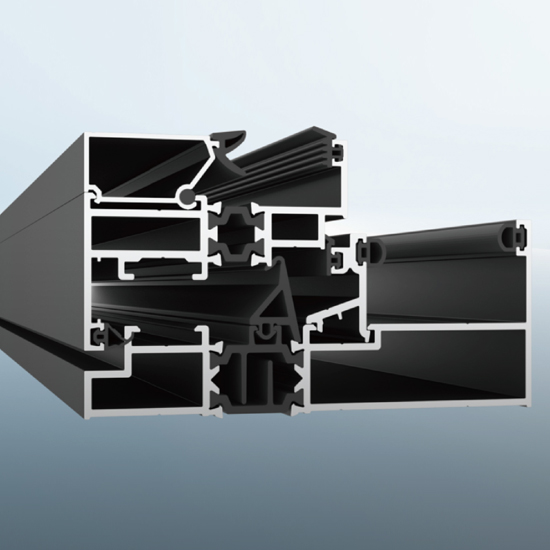

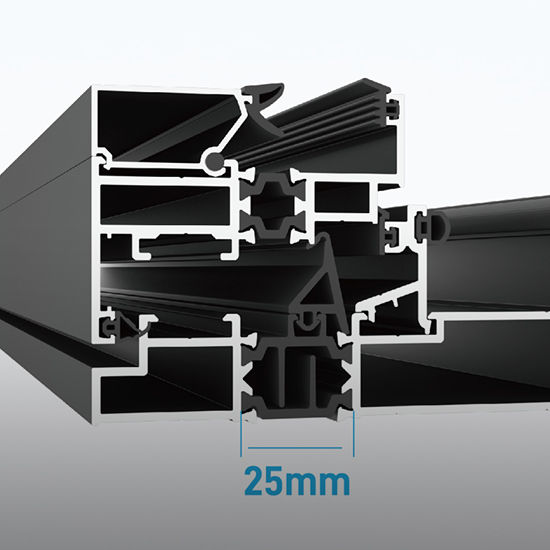

- Multi-cavity outer frame with 25 mminsulating strips enhances airtightnessand insulation.
High Sealing, Thermal Insulation

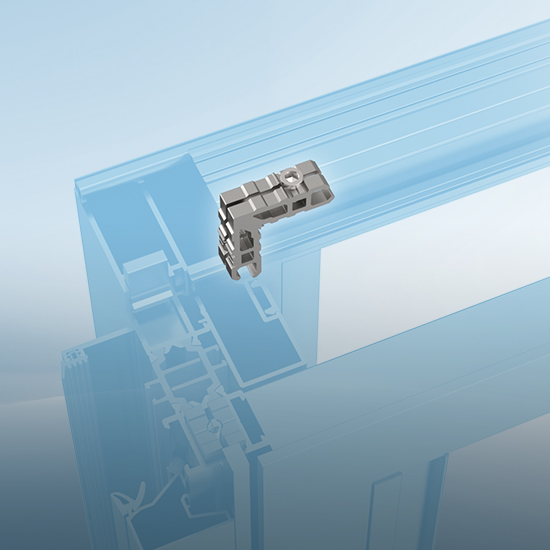

- Injected-screw corner cleat ensures seamless connection and superior frame strength.
High Sealing, Thermal Insulation

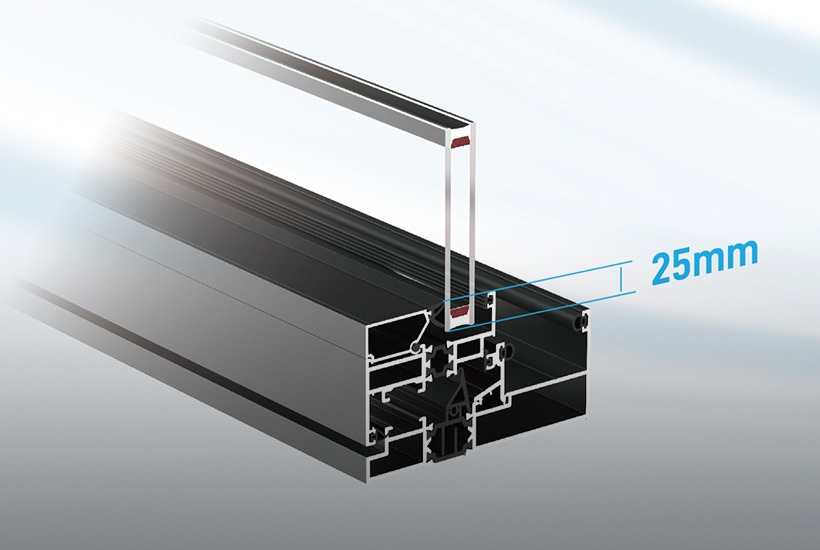

- 25 mm glazing depth with dual-gasket fixation ensures stronger glass retention and airtight sealing.
Intelligent Control

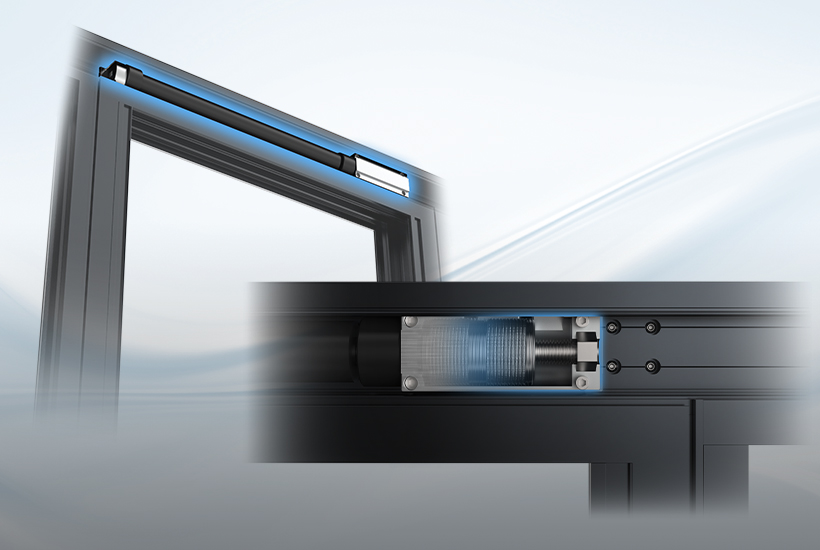

- Equipped with a self-developed integrated motor and AI algorithm-based control system that learns intelligently and requires no recalibration after power loss.
- Tested for 20,000 high-frequency cycles, ensuring superior performance and long-term durability.
Easy Installation & Maintenance

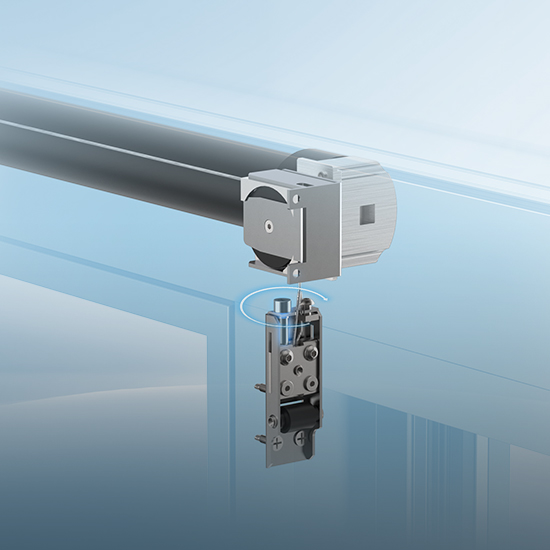

- The cable-wheel features a built-in tension adjustment mechanism with a20 mm range, easily correcting sash misalignment caused by uneven floors.
Easy Installation & Maintenance
- Both hardware and electric control systems feature independent modular designs. The motor requires only one connecting cable,enabling quick, one-step installati6h.
Easy Installation & Maintenance

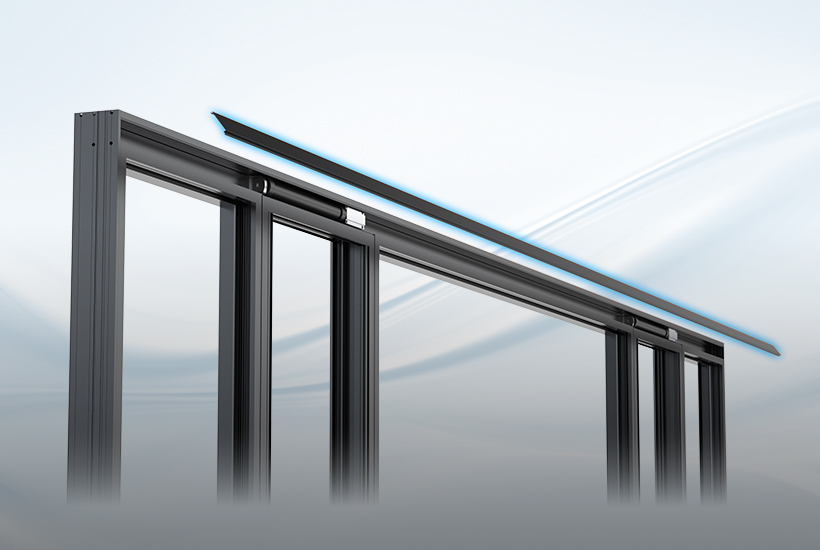

- Detachable inspection cover allows easy installation and maintenance.
Easy Installation & Maintenance

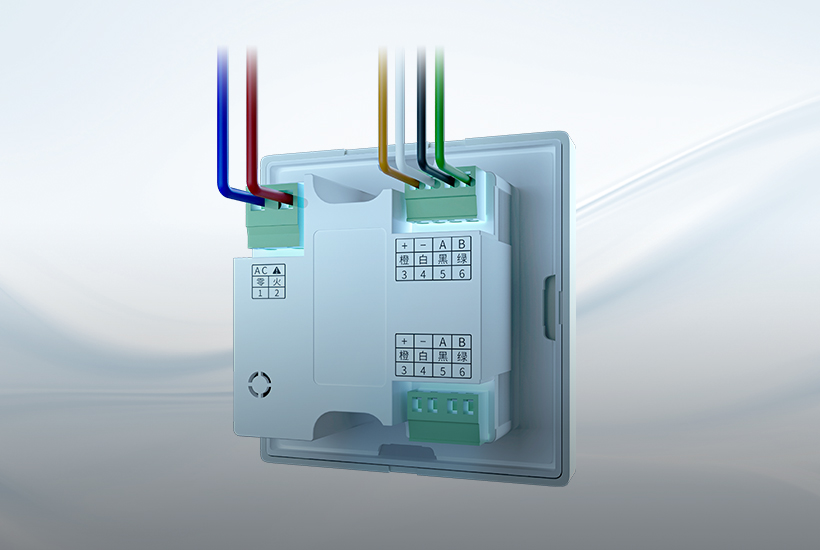

- Anti-burn wiring design prevents damage even if four control wires are misconnected,ensuring greater installation tolerance.

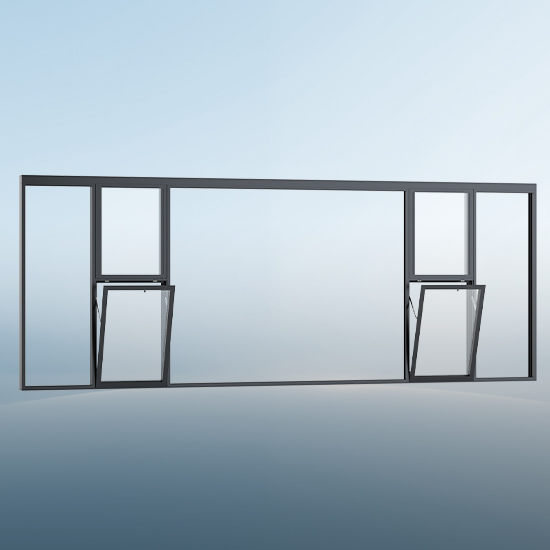

Versatile Configurations

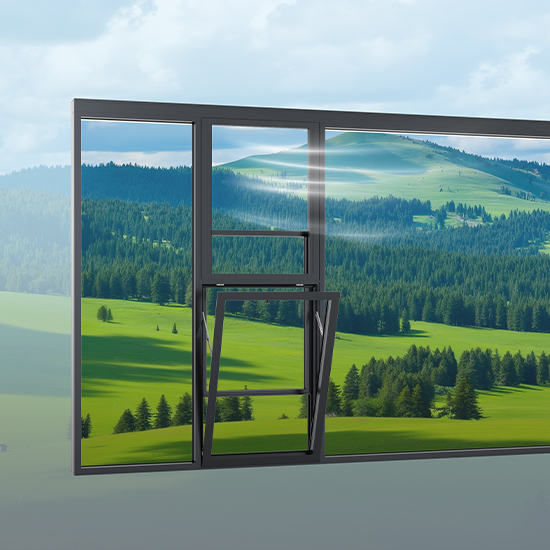

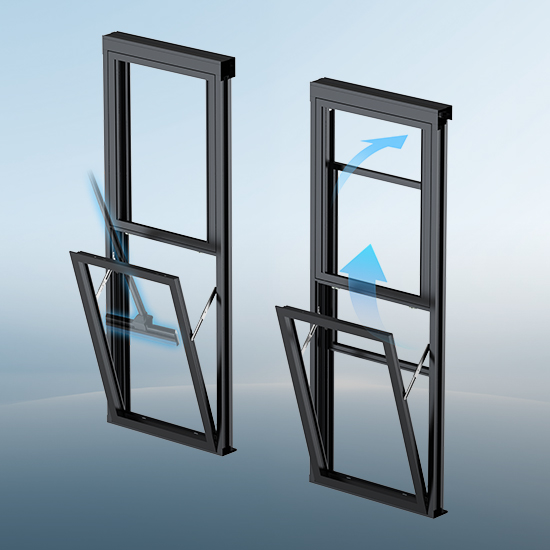

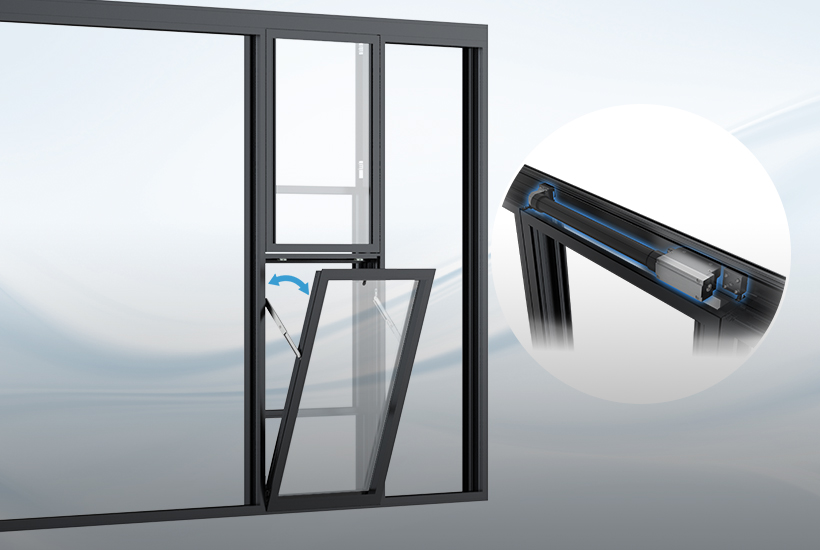

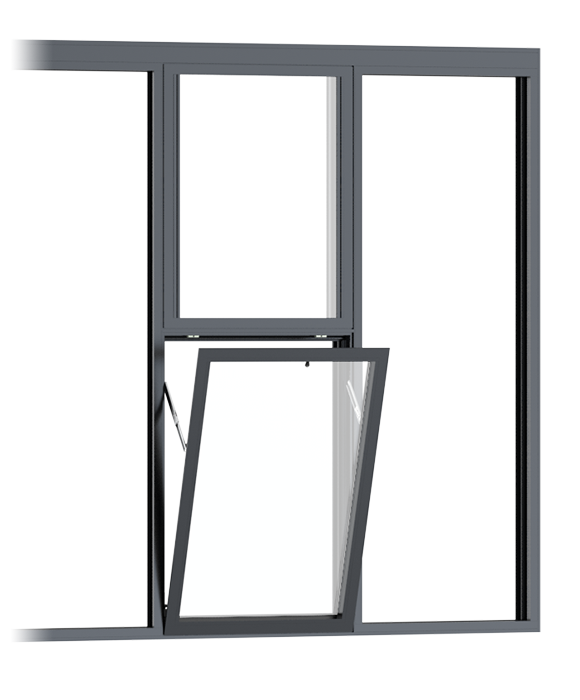

- Compatible with tilt windows, offering a 20 cm opening distance. The tilt mode allows easy exterior cleaning, while the electric lift mode ensures fresh-air circulation.
