Integrated hardware control system solution for exterior window
Superior Heat Insulation and Waterproofng Unafraid of Strong Winds and Heavy Rain.
Short Description
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more. Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.
Technical Resources
Get detailed information on the product line including types of windows and doors, color and finish options, sizing, hardware, and more.
Solution Configuration
Standard Configuration
| No. | Product Name | Qty | Unit | Product Code | Notes |
| 1 | PH924 Handle | 1 | pc | PH924.00.168H5 | Antibacteria matte black, optional silver or antiquebronze, height 27 mm |
| 2 | PH939 Handle | 1 | pc | PH939.00.168H5 | Antibacteria matte black, optional silver or antiquebronze, height 34.5 mm |
| 3 | SP07 Spindle | 1 | pc | SP07.07.60C021X | Spindle length: 60 mm, optional sizes available |
| 4 | Gear Case | 1 | pc | AGC50.26.014H4 | Backset: 26 mm, optional specifications available |
| 5 | Concealed Outward Openingand Awning Hardware Set | 1 | set | CTA80.20.38LH5 | Opening angle: 80°, load capacity 80 kgSash width: 510-900 mm, sash height: 665-2000 mm |
| 6 | Corner Transmission Device | 1 | pc | AMCT10.00.021 | For sashes over 800 mm wide or 1200 mm high,additional middle lock recommended to enhancesafety, locking strength, and sealing performance. |
| 7 | ALR28 Rolling Locking Rod | 1 | pc | ALR28.65.021H4 | |
| 8 | Locking Plate | 1 | pc | ALP10.00.021 |
Advantages Of The Solution

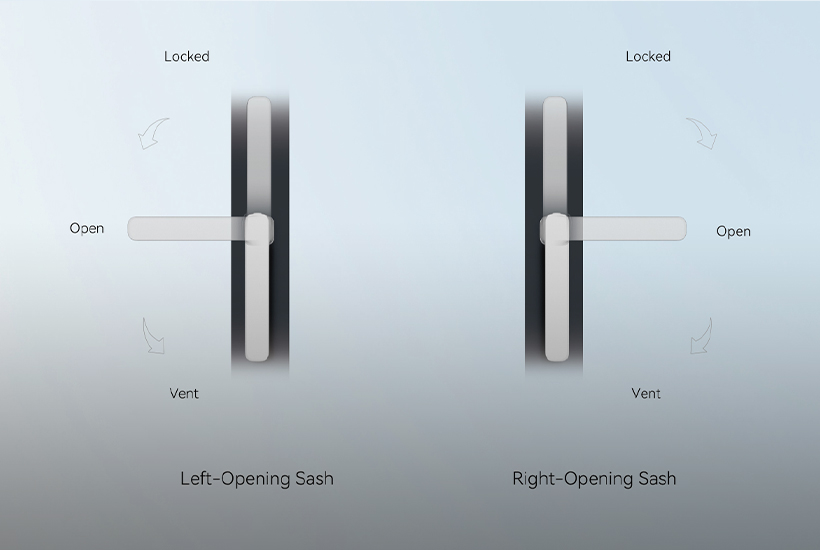

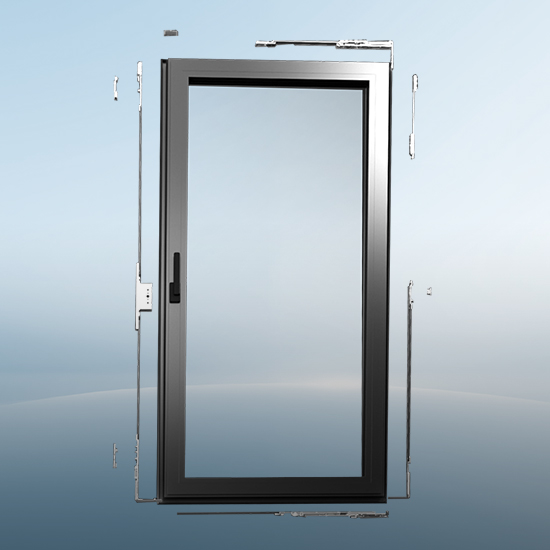

Operation Diagram

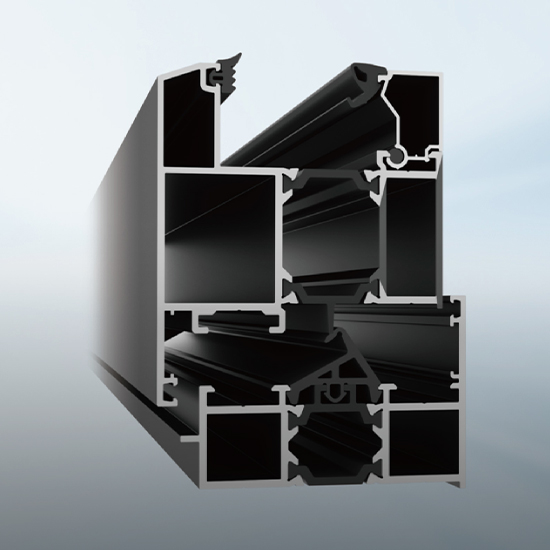

Profile Information

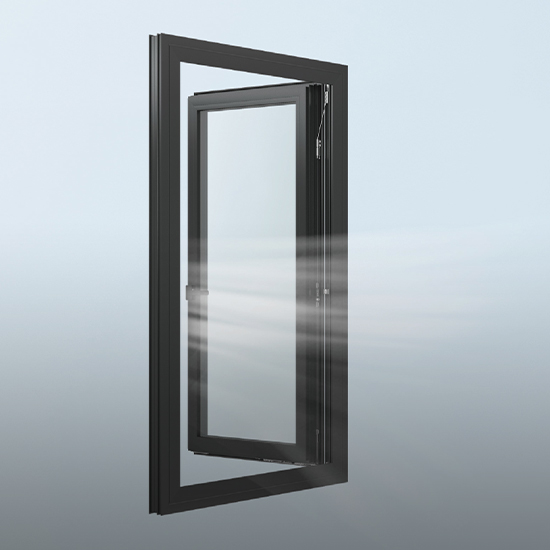

Outward Opening Position
- Opens 90 outward for maximum airflow and ventilation efficiency.

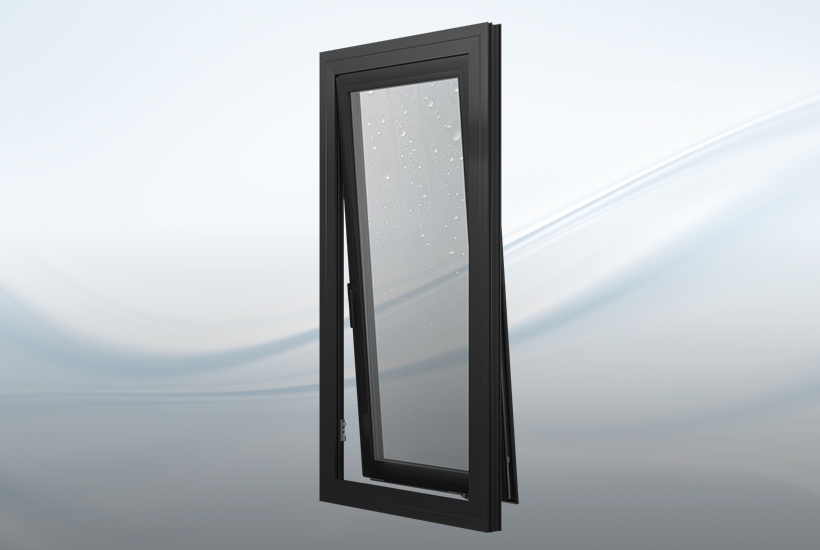

Awning Position
- 130 mm awning distance allows ventilation even in light rain without water ingress.

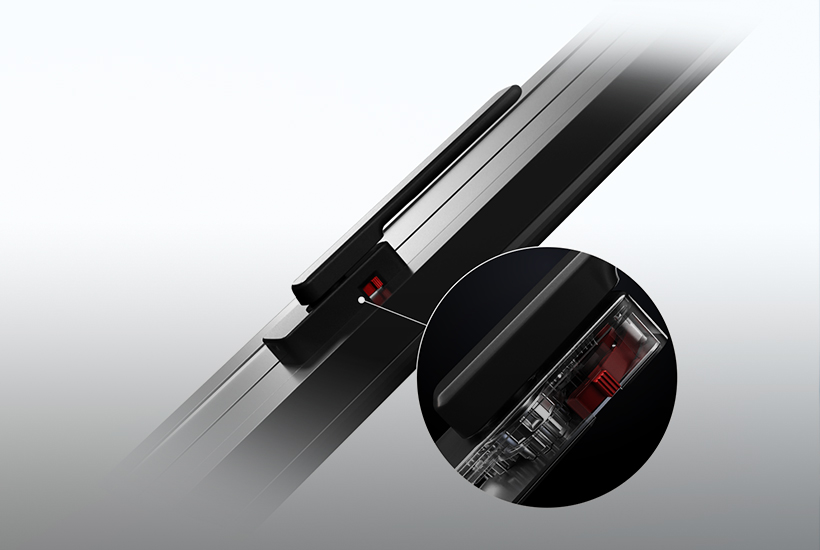

Safety Protection
- Child-safety lock on the handle preventsaccidental window opening and ensureshome safety.

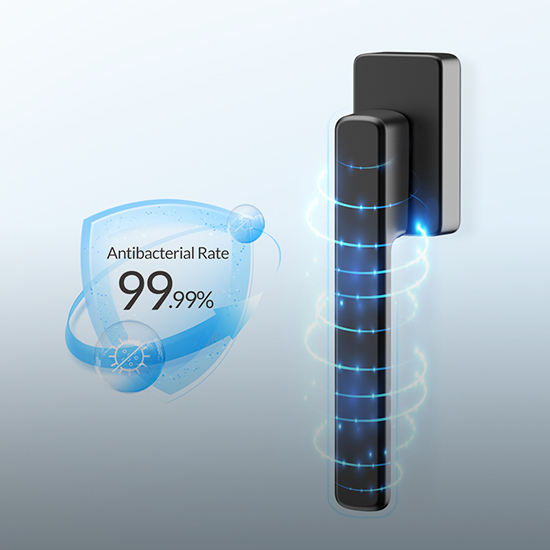

Antibacterial Protection
- Silver-ion antibacterial coating achieves 99.9% inhibition rate for a healthier living environment.
Superior Sealing & Wind Resistance

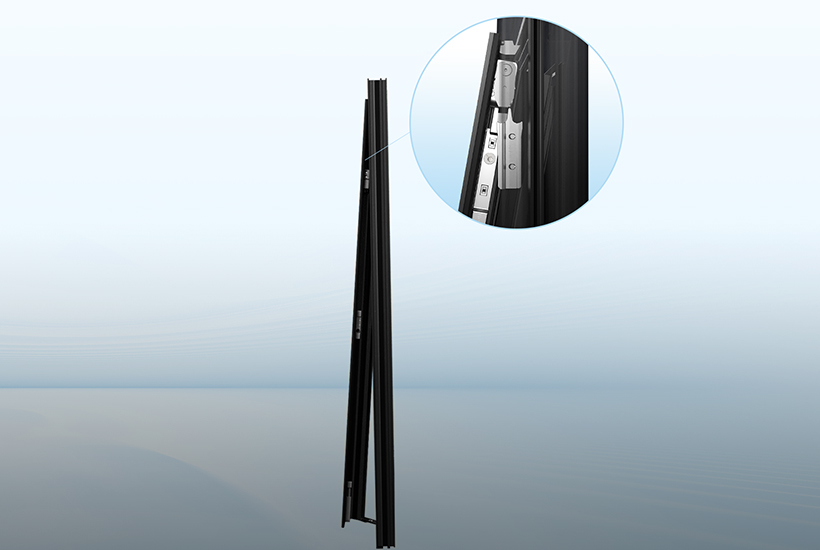

- Hinge-side intermediate locks can be added as needed based on sash height to achieve multi-point locking and enhance overall sealing and wind-pressure resistance.
Stable Load Capacity

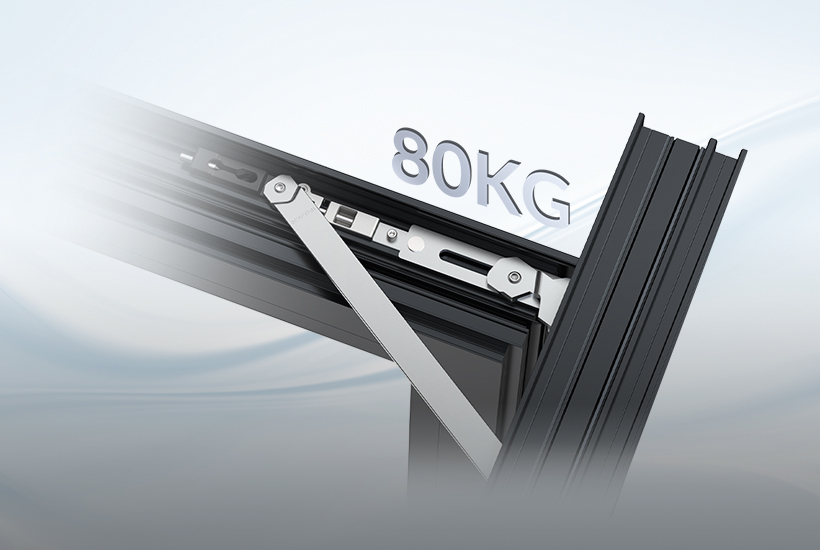

- Supports up to 80 kg per sash,ensuring stability and compatibility with large-size windows.

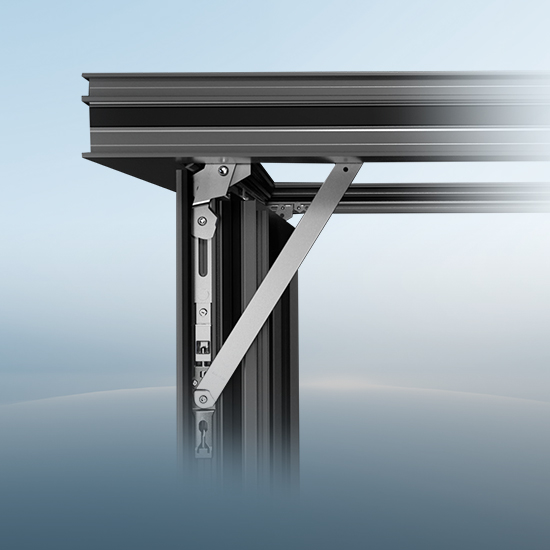

Anti-Wobble Structure

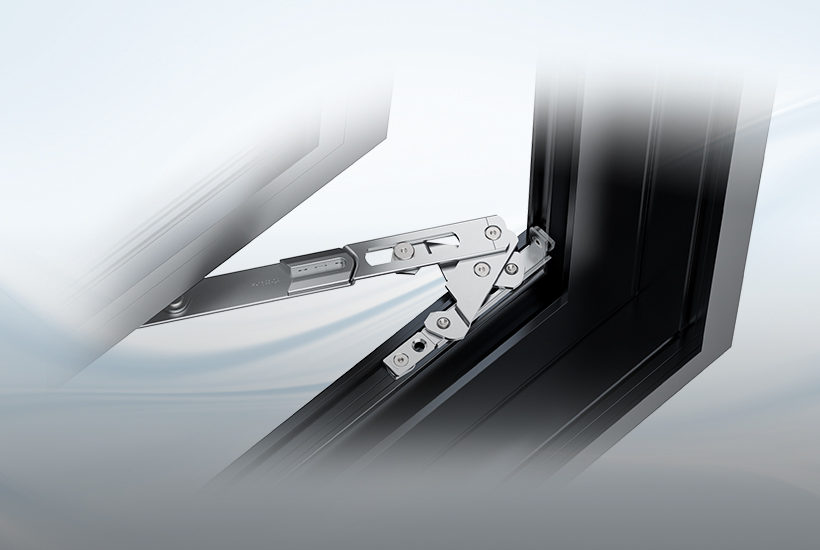

- The hinge features an open-stay structure, effectively resisting wind pressure and preventing sash shaking.
Anti-Misoperation Design

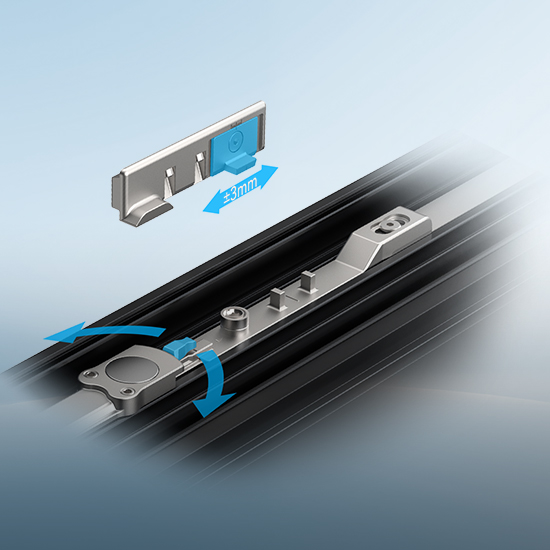

- Prevents operating errors and ensures precisepositioning with 3 mm locking piece adjustment.
Smooth Transmission

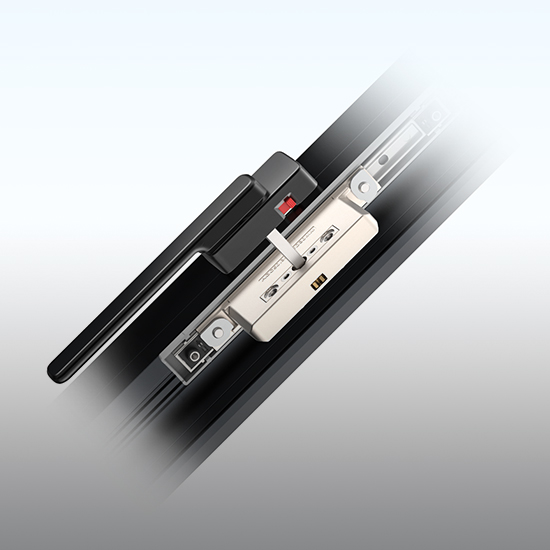

- Anti-misalignment design prevents gear caseskewing, ensuring smooth and precise motionduring handle operation.
Top Load Support
- The top-load design and side support evenly distribute hinge stress, preventing sash sagging over time.
Safety Anti-Fall

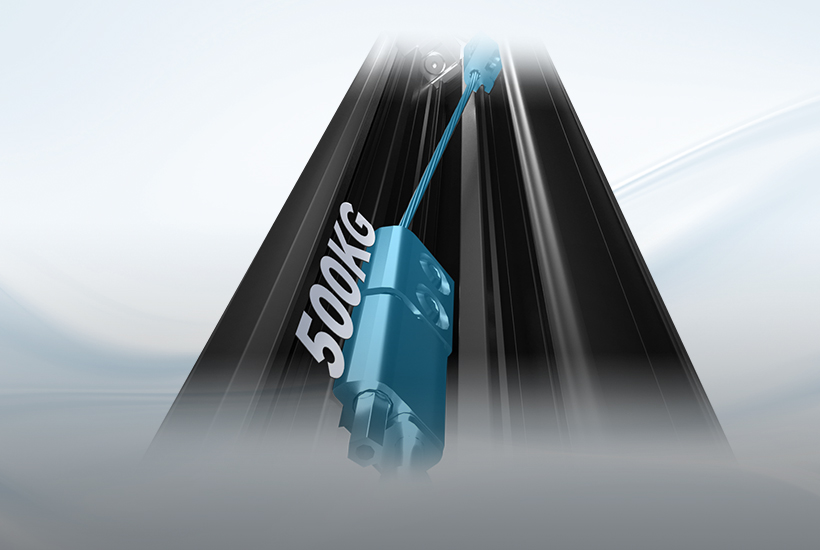

- Equipped with an anti-fall device supporting up to 500 kg load,effectively preventing sash sagging or accidental drop.
Safety Limiter
- Built-in open stay provides wind resistance and secure position limiting.

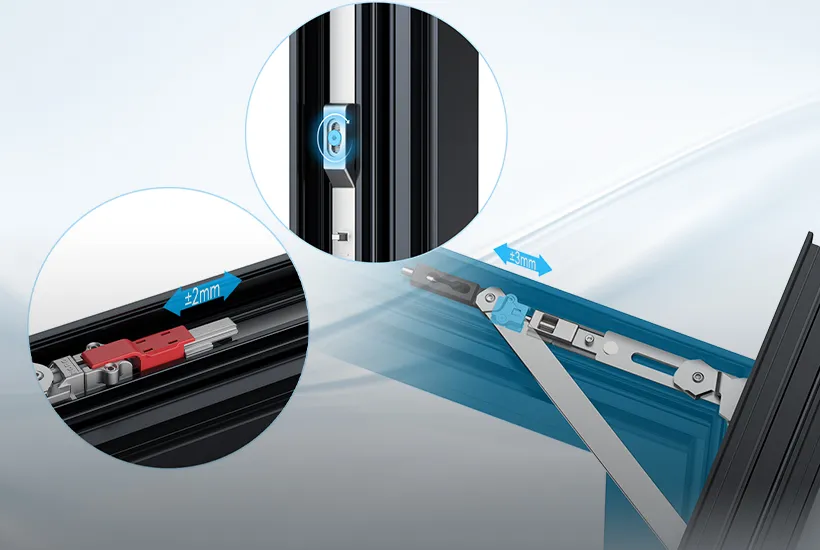

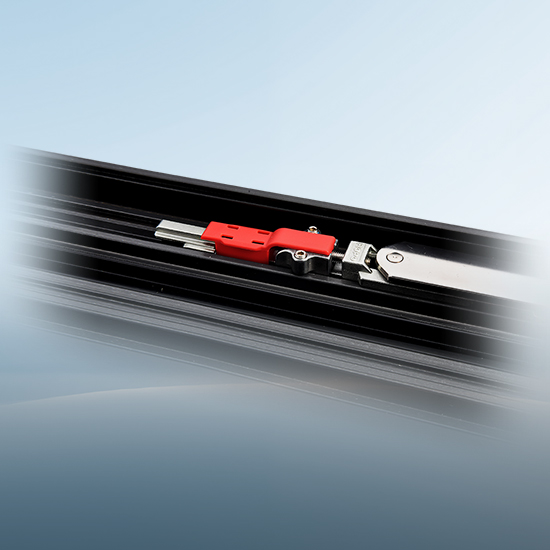

Easy Installation
- The hinges feature red positioning parts,and the initial setup defaults to theoutward-opening position.
Easy Installation
- The adjustable hinge and transmission system enable tolerance installation, eliminating the need for precise cutting.
