G46 Tilt and Slide Window

G46 Inward Tilt and Slide

The G46 Inward Tilt and Slide Window System offers innovative dual-opening methods for flexible ventilation while saving indoor space. With excellent thermal insulation, wind resistance, and sleek panoramic design, it combines functionality and style, making it ideal for modern living.

download

PROTECTION LEVEL

Air Tightness (m³/mh)

q1≤0.5m³/mh;
q2≤1.5m³/㎡h （highest）
Water Tightness (Pa)

△P=350Pa
Wind Pressure Resistance (Pa)

P3=3000Pa
Thermal Insulation (W/㎡·K)

K=1.8W/(㎡*K)
Soundproofing (dB)

RW=35dB

Advantages and features

Two Opening Methods

Sliding Opening: Large Ventilation area; simple and elegant, with an open view; window sash inward movement d=72mm; does not interfere with curtains; inward opening does not occupy space; avoids collisions.

Inward Opening: Maintain air circulation with micro-ventilation; Designed with deal-side dual-arm structure; Inward opening distance of 115mml Greater and more stable opening angle
Ultra-high water tightness

Even in heavy rain outside, the interior remains dry

Sealing strips use EPDM soft-hard co-extrusion design

Excellent sealing performance,

minimal force is required for door and window operation

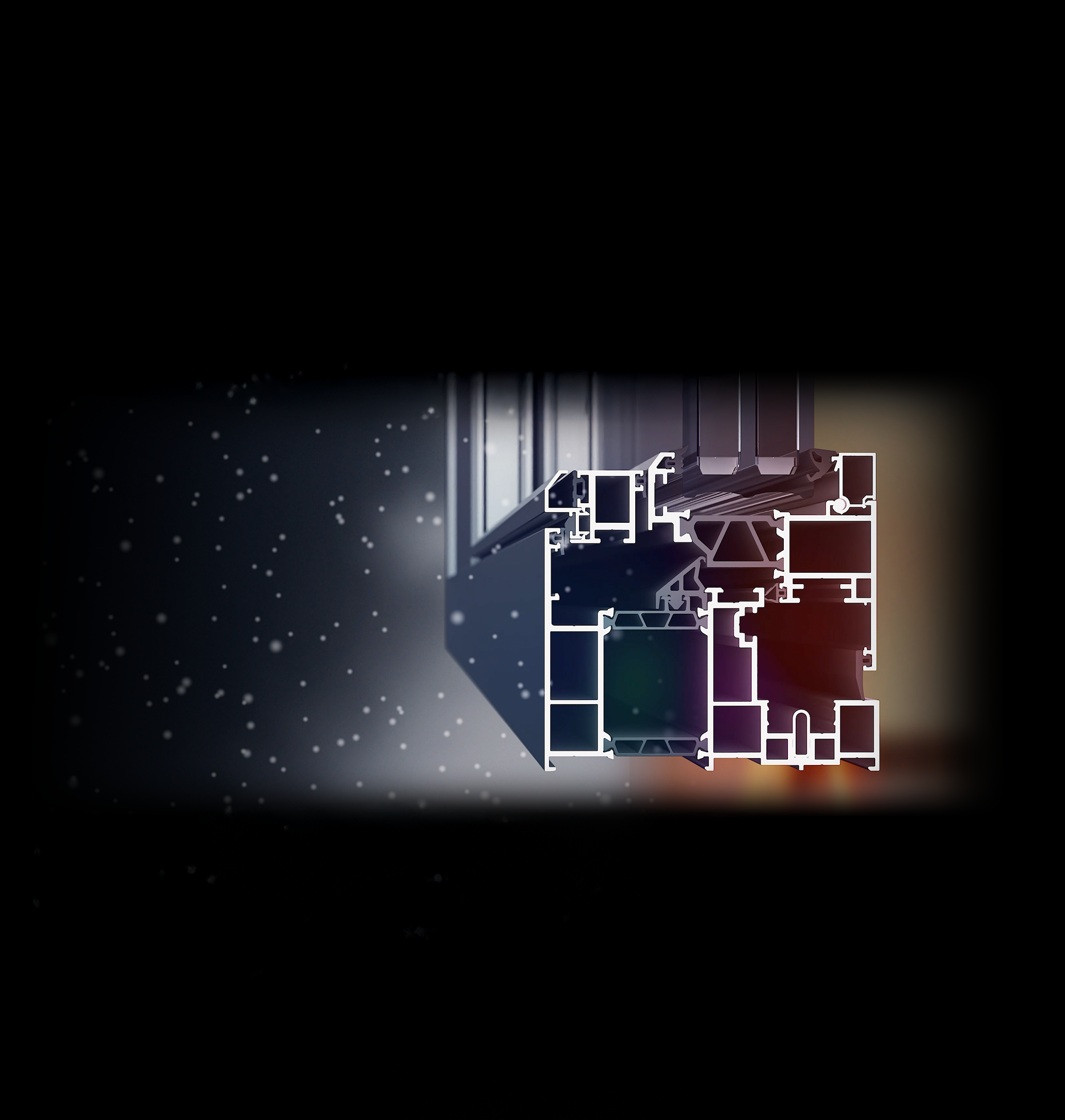

Thermal Insulation

Block heat flow from outside, maintain cool indoor environment

Standard equipped with 24mm thermal insulation strip

Optional 35.3mm large thermal insulation strip

Provides superior thermal insulation performance
Extremely High Soundproofing

Even when thunder roars outside, it provides you with a quiet home

The frame can accommodate a maximum glass thickness of 39mm

(Triple-glazed:5+12A+5+12A+5)

Equipped with three sealing strips and independent drainage design improvement in airtightness, water tightness, thermal insulation, and soundproofing
High Differential drainage structure

High differential drainage structure, large difference in pressure balance between the inside and outside of the drainage chamber, making drainage easier
Strong Compatibility

Add conversion slots

Can install inward opening and tilting hardware
