G45 Sealing Sliding Window

G45 Sealing Sliding

The G45 Sealing Sliding Window System is designed for modern homes, combining sleek aesthetics with exceptional performance. It features superior sealing for enhanced insulation and noise reduction, ensuring comfort and energy efficiency. The system’s smooth sliding mechanism and high-quality materials provide durability and ease of use, making it an ideal choice for contemporary living spaces.

download

PROTECTION LEVEL

Air Tightness

q1≤0.5m³/m*h;
q2≤1.5m³/㎡*h (highest)
Water Tightness (Pa)

△P=350 Pa
Wind Pressure Resistance (Pa)

P3= 3000 Pa
Thermal Insulation (W/㎡·K)

K =1.8W/(㎡*K)
Soundproofing (dB)

RW=35dB

Advantages and features

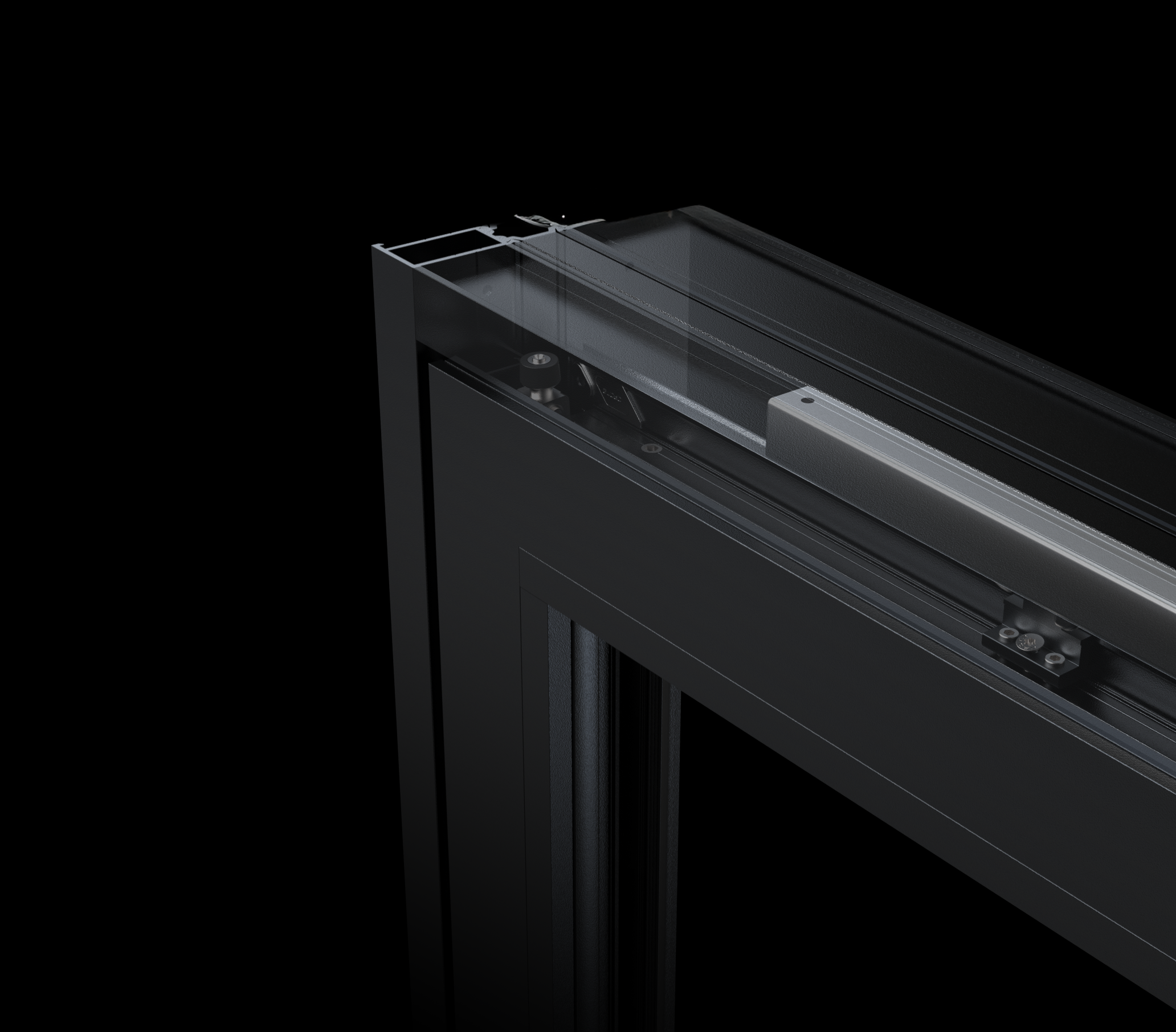

Ultra-strong Stability

The window sash is designed with built-in reinforced profiles, featuring the load-bearing structure of sliding windows. When the sash moves horizontally by 5mm, becomes even more stable, resembling the structure of high-speed rain tracks. Even under heavy stress, the window remains on track.
Typhoon Resistance

Displacement compression between fan and frame profiles, multiple locking points, paired with rotating locking hooks, achieve all-round locking, can easily withstand typhoons
Ultra-high Sound Insulation

Even if thunder and lightning are outside, you can still enjoy a quiet home.With double closed-seal rubber strips forming two sealing rings, it effectively isolates rainwater and noise
5mm Lateral Lock Closure

5mm lateral lock closure, fully compressing the rubber seal, achieving a high-speed train door-like effect.

Comprehensive improvement in sound insulation and sealing performance.
Window CLosing Buffer

Equipped with buffers for smooth sliding action and silent window closing
Safe Glass Internal Sturcture Installation

Glass internal structure and glass retaining strips are all on the interior side, eliminating installation safety hazards
